Our SWIR camera offers solutions for various markets including defense, industrial, medical,
outdoor activities, public safety and research & development.

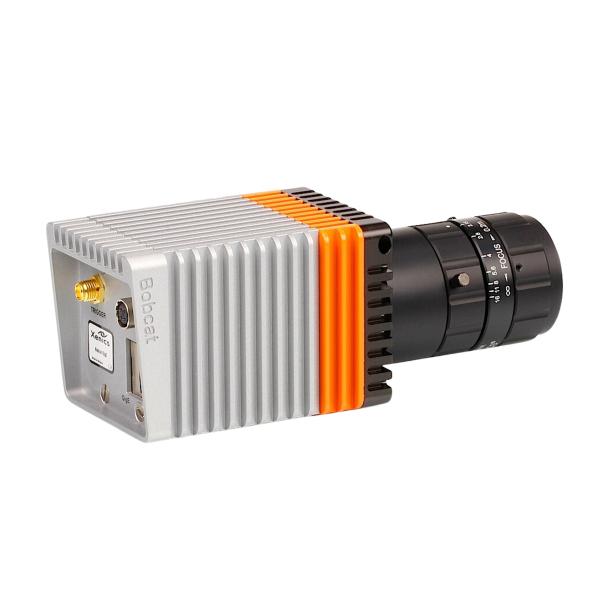

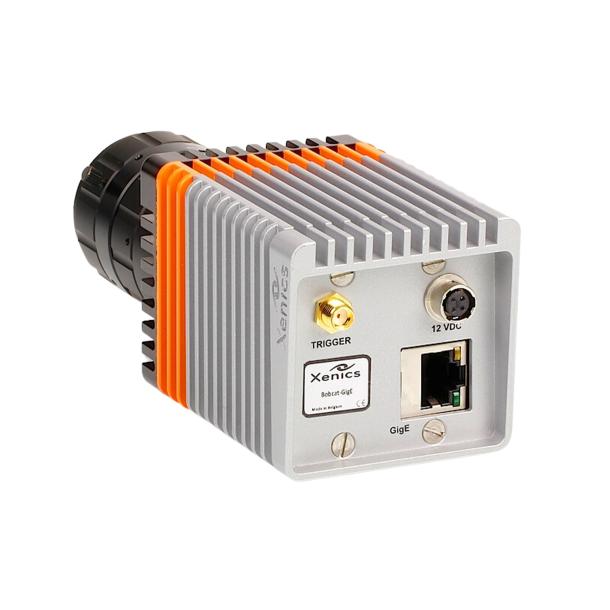

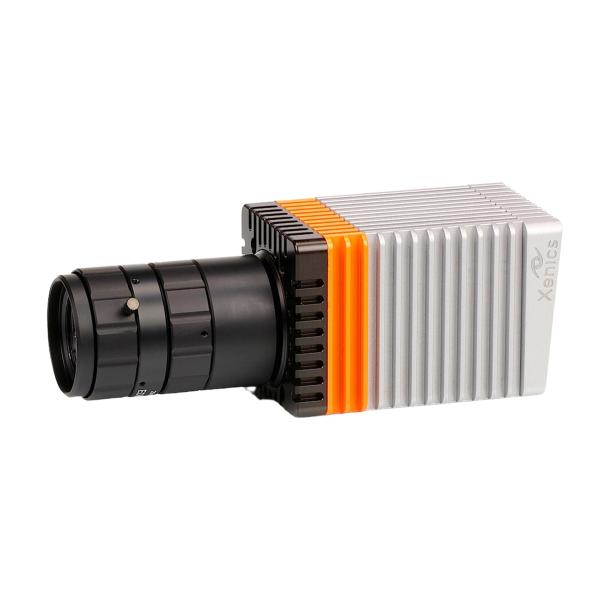

Affordable SWIR camera: The Bobcat/Bobcat+ cameras are based on an in-house developed, uncooled InGaAs detector with 320 x 256 pixels and 20 µm pixel pitch (Bobcat 320/Bobcat 320 TE0 and WL/Bobcat+ 320/Bobcat Gated series) or 640 x 512 pixels and 20 µm pixel pitch (Bobcat 640 series). Bobcat/Bobcat+ series come with a GigE or CameraLinkTM interfaces with low weight and power. Bobcat/Bobcat+ cameras are suitable for laser beam analysis and investigation of defects inside silicon semiconductor material.
Flexible and easy-to-use
Compact and lightweight
CameraLink or GigE Vision interfacing options
Description
Bobcat/Bobcat+ cameras are cost-effective, high-performance SWIR cameras for industrial applications. The cameras also benefit from Xenics user interface software Xeneth which makes them very simple to configure and use, thus reducing the R&D time and efforts.
Bobcat 320 is a flexible and easy-to-use camera that targets cost sensitive volume markets such as laser beam analysis applications, sorting & recycling industry, and investigation of defects inside silicon semiconductor material. Bobcat 320 TE0 and WL cameras are offered with GigE Vision interface, 400 Hz maximum frame rate and feature low weight and power. The WL version comes with a windowless uncooled detector, specifically targeting laser beam analysis and laser wavefront sensing applications.
Bobcat+ 320 series is the improved version of industry-proven Bobcat 320 series for demanding applications with an option for extension into visible wavelengths (vSWIR). The Bobcat 640 series has a spectral response covering the realm 0.9 to 1.7 µm, with a VisNIR option extending the wavelength realm to the visible (0.4 µm). This results in Bobcat 640 series to substantially increase measurement sensitivity by capturing more light and lowering integration times under difficult lighting conditions.
Bobcat Gated series is a small SWIR area-scan camera with extremely short 100 ns integration time.
Request Documentation
Detailed datasheets, brochures and other reference materials are available upon request.
The Bobcat 320 series is based on an in-house developed, temperature stabilised InGaAs detector with a 320 x 256 pixel resolution. The Bobcat 320 cameras are offered with frame rates of either 100 Hz or 400 Hz. The camera comes with a CameraLink or GigE Vision interface and features low weight and power. The cameras have standard on-board image correction featuring non-uniformity correction (NUC), bad pixel replacement (BPR) and automatic gain control (AGC).
Flexible and easy-to-use
Compact and lightweight
High frame rate of 400 Hz
Specifications
Mechanical Specifications
Bobcat 320 CL 100 / 400
Bobcat 320 GigE 100 / 400
Approximate dimensions - excluding lens [width x height x length] [mm]
55 x 55 x 72
55 x 55 x 82
Weight [gr] - excluding lens
285
334
Optical interface
C-mount or M42
C-mount or M42
Connector GigE
-
RJ-45
Connector CameraLink
Standard SDR
-
Connector power
Hirose HR10-7R-SA[73]
Hirose HR10-7R-SA[73]
Connector trigger
SMA
SMA
Environmental & Power Specifications
Bobcat 320 CL 100 / 400
Bobcat 320 GigE 100 / 400
Operating case temperature [°C]
From -40 to +70; also available in temperature range 0 - 50
From -40 to +70; also available in temperature range 0 - 50
Storage temperature [°C]
From -45 to +85
From -45 to +85
Power consumption [W]
2.8 [no TE cooler]
4 [no TE cooler]
Power supply voltage
DC 12 V
DC 12 V
Shock
IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
Vibration
Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
IP rating
IP40
IP40
Regulatory compliance
CE, RoHS
CE, RoHS
Electro-Optical Specifications
Bobcat 320 CL 100 / 400
Bobcat 320 GigE 100 / 400
Image format [pixels]
320 x 256
320 x 256
Pixel pitch [µm]
20
20
Detector type
InGaAs photodiode array with CTIA ROIC
InGaAs photodiode array with CTIA ROIC
Sensor temperature stabilization
TE cooler
TE cooler
Integration type
Snapshot - global shutter
Snapshot - global shutter
Active area and diagonal [mm]
6.4 x 5.12 [diagonal 8.2]
6.4 x 5.12 [diagonal 8.2]
Optical fill factor
100%
100%
Spectral range [nm]
900 - 1700
900 - 1700
Quantum efficiency
~80% [typical peak value]
~80% [typical peak value]
Gain mode
Single Gain
Single Gain
Full well capacities [electrons]
70k
70k
Read noise [electrons]
110
110
Dark current [electrons/second]
<100k [at 288K sensor temp and 150 mV reverse bias]
<100k [at 288K sensor temp and 150 mV reverse bias]
Read out mode
ITR
ITR
Pixel operability
>99%
>99%
Preconfigured exposure time range [ms]
0.5 to 10 for 100 Hz; 0.01 to 40 for 400 Hz
0.5 to 10 for 100 Hz; 0.01 to 40 for 400 Hz
Max frame rate [Hz] [full frame]
100 or 400
100 or 400
Region of interest
Yes [only for 400 Hz model]
Yes [only for 400 Hz model]
Min region size [pixels]
32 x 4 [step 4 x 1] [only for 400 Hz model]
32 x 4 [step 4 x 1] [only for 400 Hz model]
Max frame rate [Hz] [min region size]
>10000 [only for 400 Hz model]
>10000 [only for 400 Hz model]
Analog-to-Digital [ADC] [bits]
14
14
Command and control
CameraLink
GigE Vision
Digital output format
CameraLink [16 bit]
GigE Vision [16 bit]
Trigger
In or out via SMA or in via CL-CC1 [Configurable]
In or out via SMA [Configurable]
The Bobcat 320 TE0 and WL series are based on an in-house developed, uncooled InGaAs detector with a 320 x 256 pixel resolution. The Bobcat 320 TE0 and WL cameras are offered with GigE Vision interface, 400 Hz maximum frame rate and feature low weight and power. The Bobcat 320 WL comes with a windowless uncooled detector, specifically targeting laser beam analysis and laser wavefront sensing applications. The cameras have standard on-board image correction featuring non-uniformity correction (NUC), bad pixel replacement (BPR) and automatic gain control (AGC). For more info on other image enhancement features, contact our sales department.
Flexible and easy-to-use
Compact and lightweight
High frame rate of 400 Hz
Specifications
Mechanical Specifications
Bobcat 320 TE0 GigE 400
Bobcat 320 WL GigE 400
Approximate dimensions - excluding lens [width x height x length] [mm]
55 x 55 x 74
55 x 55 x 74
Weight [gr] - excluding lens
285
334
Optical interface
C-mount or M42
C-mount or M42
Connector GigE
RJ-45
RJ-45
Connector CameraLink
-
-
Connector power
Hirose HR10-7R-SA[73]
Hirose HR10-7R-SA[73]
Connector trigger
SMA
SMA
Environmental & Power Specifications
Bobcat 320 TE0 GigE 400
Bobcat 320 WL GigE 400
Operating case temperature [°C]
From -40 to +70; also available in temperature range 0 - 50
From -40 to +70; also available in temperature range 0 - 50
Storage temperature [°C]
From -45 to +85
From -45 to +85
Power consumption [W]
4
4
Power supply voltage
DC 12 V
DC 12 V
Shock
IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
Vibration
Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
IP rating
IP40
IP40
Regulatory compliance
CE, RoHS
CE, RoHS
Electro-Optical Specifications
Bobcat 320 TE0 GigE 400
Bobcat 320 WL GigE 400
Image format [pixels]
320 x 256
320 x 256
Pixel pitch [µm]
20
20
Detector type
InGaAs photodiode array with CTIA ROIC
InGaAs photodiode array with CTIA ROIC
Sensor temperature stabilization
Uncooled
Uncooled and windowless detector
Integration type
Snapshot - global shutter
Snapshot - global shutter
Active area and diagonal [mm]
6.4 x 5.12 [diagonal 8.2]
6.4 x 5.12 [diagonal 8.2]
Optical fill factor
100%
100%
Spectral range [nm]
900 - 1700
900 - 1700
Quantum efficiency
~80% [typical peak value]
~80% [typical peak value]
Gain mode
Single Gain
Single Gain
Full well capacities [electrons]
70k
70k
Read noise [electrons]
110
110
Dark current [electrons/second]
<2E6 [for 150 mV reverse bias] typically
<2E6 [for 150 mV reverse bias] typically
Read out mode
ITR
ITR
Pixel operability
>99.5%
>99.5%
Preconfigured exposure time range [ms]
0.5 to 4
0.5 to 4
Max frame rate [Hz] [full frame]
400
400
Region of interest
Yes
Yes
Min region size [pixels]
32 x 4 [step 4 x 1]
32 x 4 [step 4 x 1]
Max frame rate [Hz] [min region size]
>10000
>10000
Analog-to-Digital [ADC] [bits]
14
14
Command and control
GigE Vision
GigE Vision
Digital output format
GigE Vision [16 bit]
GigE Vision [16 bit]
Trigger
In or out via SMA [Configurable]
In or out via SMA [Configurable]
The Bobcat+ 320 series is based on an in-house developed, temperature stabilised InGaAs detector with a 320 x 256 pixel resolution. The Bobcat+ 320 cameras come with GigE Vision interface and offer high frame rates up to 400 Hz. The new and improved Bobcat+ 320 now comes with two gain modes (high gain and high dynamic range) and two read out modes (IWR or ITR). Moreover, a vSWIR version is also available. The cameras have standard on-board image correction featuring non-uniformity correction (NUC), bad pixel replacement (BPR) and automatic gain control (AGC). For more info on other image enhancement features, contact our sales department.
Flexible and easy-to-use
SWIR or vSWIR
High frame rate of 400 Hz
Specifications
Mechanical Specifications
Bobcat+ 320 GigE 400
Bobcat+ 320 GigE 400 vSWIR
Approximate dimensions - excluding lens [width x height x length] [mm]
55 x 55 x 82
55 x 55 x 82
Weight [gr] - excluding lens
334
334
Optical interface
C-mount or M42
C-mount or M42
Connector GigE
RJ-45
RJ-45
Connector CameraLink
-
-
Connector power
Hirose HR10-7R-SA[73]
Hirose HR10-7R-SA[73]
Connector trigger
SMA
SMA
Environmental & Power Specifications
Bobcat+ 320 GigE 400
Bobcat+ 320 GigE 400 vSWIR
Operating case temperature [°C]
From -40 to +70; also available in temperature range 0 - 50
From -40 to +70; also available in temperature range 0 - 50
Storage temperature [°C]
From -45 to +85
From -45 to +85
Power consumption [W]
4 [no TE cooler]
4 [no TE cooler]
Power supply voltage
DC 12 V
DC 12 V
Shock
IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
Vibration
Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
IP rating
IP40
IP40
Regulatory compliance
CE, RoHS
CE, RoHS
Electro-Optical Specifications
Bobcat+ 320 GigE 400
Bobcat+ 320 GigE 400 vSWIR
Image format [pixels]
320 x 256
320 x 256
Pixel pitch [µm]
20
20
Detector type
InGaAs photodiode array with CTIA ROIC
InGaAs photodiode array with CTIA ROIC
Sensor temperature stabilization
TE cooler
TE cooler
Integration type
Snapshot - global shutter
Snapshot - global shutter
Active area and diagonal [mm]
6.4 x 5.12 [diagonal 8.2]
6.4 x 5.12 [diagonal 8.2]
Optical fill factor
100%
100%
Spectral range [nm]
900 - 1700
500 - 1700
Quantum efficiency
~80% [typical peak value]
~80% [typical peak value]
Gain mode
High Gain [HG] & High Dynamic Range mode [HDR]
High Gain [HG] & High Dynamic Range mode [HDR]
Full well capacities [electrons]
45k [HG] & 500k [HDR]
45k [HG] & 500k [HDR]
Read noise [electrons]
120 [HG] & 500 [HDR]
120 [HG] & 500 [HDR]
Dark current [electrons/second]
<1E5 [at 288K sensor temp and 150mV reverse bias]
<2E5 [at 288K sensor temp and 150mV reverse bias]
Read out mode
ITR and IWR
ITR and IWR
Pixel operability
>99.5%
>99.5%
Preconfigured exposure time range [ms]
0.1 to 40 in HG; 0.1 to 20 in HDR
0.1 to 40 in HG; 0.1 to 20 in HDR
Max frame rate [Hz] [full frame]
400
400
Region of interest
Yes
Yes
Min region size [pixels]
32 x 4 [step 16 x 4]
32 x 4 [step 16 x 4]
Max frame rate [Hz] [min region size]
>10000
>10000
Analog-to-Digital [ADC] [bits]
14
14
Command and control
GigE Vision
GigE Vision
Digital output format
GigE Vision [16 bit]
GigE Vision [16 bit]
Trigger
In or out via SMA [Configurable]
In or out via SMA [Configurable]
The Bobcat 640 series is based on an in-house developed, temperature stabilized InGaAs detector with a 640 x 512 pixel resolution. The Bobcat 640 cameras are offered with high frame rate of 100 Hz. The camera comes with a CameraLink or GigE Vision interface and features low weight and power. We offer a visible enhanced short-wave infrared (vSWIR) option for extended wavelength response into the visible band. The cameras have standard on-board image correction featuring non-uniformity correction (NUC), bad pixel replacement (BPR) and automatic gain control (AGC). For more info on other image enhancement features, contact our sales department.
Flexible and easy to use
Low noise, low dark current
CameraLink or GigE Vision interfacing options
Specifications
Mechanical Specifications
Bobcat 640 CL SWIR / vSWIR
Bobcat 640 GigE SWIR / vSWIR
Approximate dimensions - excluding lens [width x height x length] [mm]
55 x 55 x 72
55 x 55 x 82
Weight [gr] - excluding lens
285
334
Optical interface
C-mount or M42
C-mount or M42
Connector GigE
-
RJ-45
Connector CameraLink
Standard SDR
-
Connector power
Hirose HR10-7R-SA[73]
Hirose HR10-7R-SA[73]
Connector trigger
SMA
SMA
Environmental & Power Specifications
Bobcat 640 CL SWIR / vSWIR
Bobcat 640 GigE SWIR / vSWIR
Operating case temperature [°C]
From -40 to +70; also available in temperature range 0 - 50
From -40 to +70; also available in temperature range 0 - 50
Storage temperature [°C]
From -45 to +85
From -45 to +85
Power consumption [W]
2.8 [no TE cooler]
4 [no TE cooler]
Power supply voltage
DC 12 V
DC 12 V
Shock
IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
Vibration
Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
IP rating
IP40
IP40
Regulatory compliance
CE, RoHS
CE, RoHS
Electro-Optical Specifications
Bobcat 640 CL SWIR / vSWIR
Bobcat 640 GigE SWIR / vSWIR
Image format [pixels]
640 x 512
640 x 512
Pixel pitch [µm]
20
20
Detector type
InGaAs photodiode array with CTIA ROIC
InGaAs photodiode array with CTIA ROIC
Sensor temperature stabilization
TE cooler
TE cooler
Integration type
Snapshot - global shutter
Snapshot - global shutter
Active area and diagonal [mm]
12.8 x 10.24 [diagonal 16.4]
12.8 x 10.24 [diagonal 16.4]
Optical fill factor
100%
100%
Spectral range [nm]
900 - 1700 [SWIR]; 500 - 1700 [vSWIR]
900 - 1700 [SWIR]; 500 - 1700 [vSWIR]
Quantum efficiency
~80% [typical peak value]
~80% [typical peak value]
Gain mode
High Gain [HG] & High Dynamic Range [HDR]
High Gain [HG] & High Dynamic Range [HDR]
Full well capacities [electrons]
45k [HG] & 500k [HDR]
45k [HG] & 500k [HDR]
Read noise [electrons]
120 [HG] & 500 [HDR]
120 [HG] & 500 [HDR]
Dark current [electrons/second]
<100k [at 288K sensor temp and 150 mV reverse bias]; For vSWIR: <200k
<100k [at 288K sensor temp and 150 mV reverse bias]; For vSWIR: <200k
Read out mode
IWR & ITR
IWR & ITR
Pixel operability
>99%
>99%
Preconfigured exposure time range [ms]
0.1 to 40 in HG; 0.1 to 20 in HDR
0.1 to 10 in HG; 0.1 to 20 in HDR
Max frame rate [Hz] [full frame]
100
100
Region of interest
Yes
Yes
Min region size [pixels]
32 x 4 [step 16 x 4]
32 x 4 [step 16 x 4]
Max frame rate [Hz] [min region size]
>10000
>10000
Analog-to-Digital [ADC] [bits]
14
14
Command and control
CameraLink
GigE Vision
Digital output format
CameraLink [16 bit]
GigE Vision [16 bit]
Trigger
In or out via SMA or in via CL-CC1 [Configurable]
In or out via SMA [Configurable]
The Bobcat 320 Gated series is based on an in-house developed, temperature stabilised InGaAs detector with a 320 x 256 pixel resolution. The Bobcat 320 Gated cameras are able to provide maximum frame rates up to 400 Hz. The exposure time of the sensor is configurable from 100 ns up to 1 ms in steps of 100 ns, or from 1 ms to 40 ms. The camera comes with either CameraLink or GigE Vision interface.
Extremely short 100 ns integration time
CameraLink or GigE Vision interfacing options
High frame rate of 400 Hz
Specifications
Mechanical Specifications
Bobcat 320 CL Gated
Bobcat 320 GigE Gated
Approximate dimensions - excluding lens [width x height x length] [mm]
55 x 55 x 72
55 x 55 x 82
Weight [gr] - excluding lens
285
334
Optical interface
C-mount or M42
C-mount or M42
Connector GigE
-
RJ-45
Connector CameraLink
Standard SDR
-
Connector power
Hirose HR10-7R-SA[73]
Hirose HR10-7R-SA[73]
Connector trigger
SMA
SMA
Environmental & Power Specifications
Bobcat 320 CL Gated
Bobcat 320 GigE Gated
Operating case temperature [°C]
From -40 to +70; also available in temperature range 0 - 50
From -40 to +70; also available in temperature range 0 - 50
Storage temperature [°C]
From -45 to +85
From -45 to +85
Power consumption [W]
2.8 [no TE cooler]
4 [no TE cooler]
Power supply voltage
DC 12 V
DC 12 V
Shock
IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
Vibration
Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
IP rating
IP40
IP40
Regulatory compliance
CE, RoHS
CE, RoHS
Electro-Optical Specifications
Bobcat 320 CL Gated
Bobcat 320 GigE Gated
Image format [pixels]
320 x 256
320 x 256
Pixel pitch [µm]
20
20
Detector type
InGaAs photodiode array with CTIA ROIC
InGaAs photodiode array with CTIA ROIC
Sensor temperature stabilization
TE cooler
TE cooler
Integration type
Snapshot - global shutter
Snapshot - global shutter
Active area and diagonal [mm]
6.4 x 5.12 [diagonal 8.2]
6.4 x 5.12 [diagonal 8.2]
Optical fill factor
100%
100%
Spectral range [nm]
900 - 1700
900 - 1700
Quantum efficiency
~80% [typical peak value]
~80% [typical peak value]
Gain mode
Single Gain
Single Gain
Full well capacities [electrons]
70k
70k
Read noise [electrons]
110
110
Dark current [electrons/second]
<100k [at 288K sensor temp and 150 mV reverse bias]
<100k [at 288K sensor temp and 150 mV reverse bias]
Read out mode
ITR
ITR
Pixel operability
>99%
>99%
Preconfigured exposure time range [ms]
0.1 to 40 in HG; 0.1 to 20 in HDR
0.0001 to 40
Max frame rate [Hz] [full frame]
400
400
Region of interest
Yes
Yes
Min region size [pixels]
32 x 4 [step 4 x 1]
32 x 4 [step 4 x 1]
Max frame rate [Hz] [min region size]
>10000
>10000
Analog-to-Digital [ADC] [bits]
14
14
Command and control
CameraLink
GigE Vision
Digital output format
CameraLink [16 bit]
GigE Vision [16 bit]
Trigger
In or out via SMA or in via CL-CC1 [Configurable]
In or out via SMA [Configurable]
Product Selector Guide
Bobcat 320 Series
Part number
Description
XEN-000584
Bobcat 320 CL 100
XEN-000526
Bobcat 320 CL 400
XEN-000583
Bobcat 320 GigE 100
XEN-000524
Bobcat 320 GigE 400
Bobcat 320 TE0 and WL Series
Part number
Description
XEN-000730
Bobcat 320 TE0 GigE 400
XEN-000731
Bobcat 320 WL GigE 400
Bobcat+ 320 Series
Part number
Description
XEN-000732
Bobcat+ 320 GigE 400
XEN-000738
Bobcat+ 320 GigE vSWIR 400
Bobcat 640 Series
Part number
Description
XEN-000297
Bobcat 640 CL
XEN-000140
Bobcat 640 CL vSWIR
XEN-000298
Bobcat 640 GigE
XEN-000139
Bobcat 640 GigE vSWIR
Bobcat Gated Series
Part number
Description
XEN-000585
Bobcat 320 CL Gated
XEN-000525
Bobcat 320 GigE Gated
Software and accessories
Our standard IR software, Xeneth, is included with this camera. Find out more: Software | Xenics
Our cameras are compatible with a wide variety of lenses.
We do not manufacture our own lenses, but instead offer a variety of third-party lenses that can be purchased directly from us. We guarantee compatibility for any lenses purchased directly from Xenics.
The Xenics product range includes several products that require a frame grabber card to connect the camera to a PC.
The Euresys GRABLINK full, Imperx VCE-CLEX01 and National Instruments PCIe-1433 frame grabbers are fully integrated in Xeneth and the Xeneth SDK. This means that you can use Xeneth software both to control the camera and to grab images, making abstraction of the proprietary frame grabber software.
Other frame grabbers properly integrating the CameraLink and GigE Vision protocol can be used in Xeneth and the Xeneth SDK, however only for command and control of the camera. To grab images you rely on the dedicated software provided by the frame grabber vendors.
Xenics develops flexible and modular cameras resulting in a wide variety of camera interfaces. All these interfaces require unique cabling which we keep in stock. Next to interface cables we also offer separate power supplies.
Xenics ships its infrared cameras all over the world in high-grade custom cases. As our infrared cameras have different sizes, we have several case-types in stock guaranteeing a tight fit. The cases are made of polypropylene which makes them very sturdy. They are dustproof, watertight, stackable and can cope with temperatures between -40 °C and 80 °C. In addition, they are equipped with an automatic air pressure compensation valve allowing us to ship the cameras all over the globe.
Most of our infrared cameras come with a standard hardshell case upon purchasing.
A filter can be fitted in the C-mount lens adapter of most Xenics cameras. The following Xenics SWIR cameras have a standard filter holder in the C-mount adapter (only one filter can be mounted and filter has to be 25.4 mm in diameter):
Bobcat 320 and 640
Cheetah 640 CL
Lynx
In order to lock the filter in the c-mount adapter, the following filter retainer ring has to be ordered from Xenics, part number: MEC-000614
For a list of suitable filters, please directly contact the filter supplier, Spectrogon, for filter purchases. Please check camera and filter documentation for compatible wavelength ranges.
