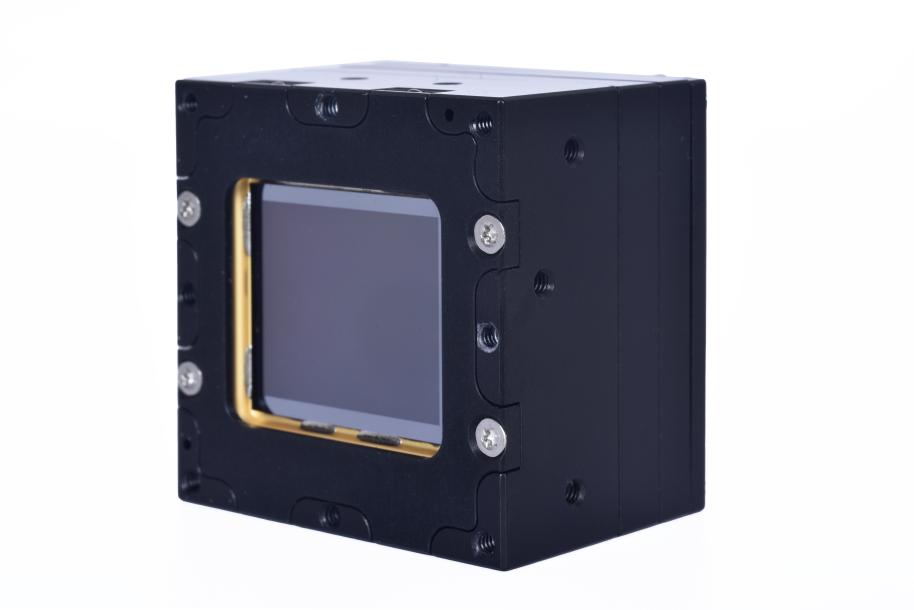

The Crius 1280 is powered by 1280x1024 pixels bolometric sensor providing excellent thermal profile with typical NETD of 50 mK. The CRIUS 1280 is the solution for demanding OEMs and integrators in long-range observation and surveillance.
LWIR – LongWave
Our LWIR camera cores are ideal for surveillance, homeland security, object detection, industrial and scientific applications.
Crius Series
Crius HR thermal core
High resolution thermal core: Crius series enables the enhancement of electro optical-systems performances: major benefit is DRI (Detection Recognition Identification), a key factor for long range observation platforms in Search and Rescue or surveillance of sensitive areas for plants, border.
High-resolution - 12 µm for better DRI ranges
Small, light and low power consumption
Frame rate up to 60 FPS
Shuttered version (1280 x 1024 - Crius S 1280)
Description
The Crius series consists of affordable SWaP optimized thermal imaging cores. These cores are available in both shuttered option (specifically for 1280 x 1024-pixel resolution) and shutterless option (for 640 x 480 or 1280 x 1024-pixel resolutions). With their remarkable compactness and exceptional resolution capabilities, Crius series significantly enhances the performance of electro-optical systems in long-range observation and surveillance.
NEW: The new Crius XP (Extreme Performance) series includes XP 640, XP 1280, and XP S 1280 (shuttered) -- delivers unmatched imaging performance. Featuring contour enhancement for sharper DRI, contrast-based autofocus management, and rapid startup under 0.7 s, these thermal cores excel in the toughest environments. With enhanced thermal stability and flexible interfaces for seamless system integration, the Crius XP Series sets a new standard for defense and high-demand operations.
Request Documentation
Detailed datasheets, brochures and other reference materials are available upon request.
REQUEST FOR INFORMATIONTechnical Information
| Camera Specifications | Crius 640 | Crius 1280 | Crius S 1280 |
| Pixel pitch | 12 µm | 12 µm | 12 µm |
| Image format | 640 x 480 pixels | 1280 x 1024 pixels | 1280 x 1024 pixels |
| Spectral range | 8 - 14 µm | 8 - 14 µm | 8 - 14 µm |
| Max frame rate | 60 Hz | 60 Hz | 60 Hz |
| Operating temperature range | -40°C to +70°C | -40°C to +70°C | -40°C to +70°C |
| Power consumption (DF40) | < 1.2 W | < 2.8 W | < 2.8 W |
| Qualification | Industrial (Standard grade) | Industrial (Standard grade) | Industrial (Standard grade) |
| Max NETD (F/1 ; 300K ; 30 Hz) | < 50 mK or < 40 mK (available upon request) | < 50 mK | < 50 mK |
| Output options | CL, SDI, DF40 | CL, SDI, DF40, MIPI CSI-2 | CL, SDI, DF40, MIPI CSI-2 |
| Shutter options | - | Shutterless | Shuttered (DF40, SDI, MIPI CSI-2) |
| Weight (DF40) | < 38 g | < 90 g | < 130g |
| Camera Specifications | Crius XP 640 | Crius XP 1280 | Crius XP S 1280 |
| Pixel pitch | 12 µm | 12 µm | 12 µm |
| Image format | 640 x 480 pixels | 1280 x 1024 pixels | 1280 x 1024 pixels |
| Spectral range | 8 - 14 µm | 8 - 14 µm | 8 - 14 µm |
| Max frame rate | 60 Hz | 60 Hz | 60 Hz |
| Operating temperature range | -40°C to +70°C | -40°C to +70°C | -40°C to +70°C |
| Power consumption (DF40) | < 1.2 W | < 2.8 W | < 2.8 W |
| Qualification | MIL-STD-810G - Method 514 Vibration: 10Hz - 2kHz 13.95g per axis 10h per axis |
MIL-STD-810G - Method 514 Vibration: 10Hz - 2kHz 13.95g per axis 10h per axis |
MIL-STD-810G - Method 514 Vibration: 10Hz - 2kHz 13.95g per axis 10h per axis |
| Max NETD (F/1 ; 300K ; 30 Hz) | < 20 mK with denoising | < 20 mK with denoising | < 20 mK with denoising |
| Output options | CL, SDI, DF40 | CL, SDI, DF40, MIPI CSI-2 | CL, SDI, DF40, MIPI CSI-2 |
| Shutter options | Shutterless | Shutterless | Shuttered (DF40, SDI, MIPI CSI-2) |
| Weight (DF40) | < 38 g | < 90 g | < 130g |
Options
The Crius 640 is powered by 640x480 pixels bolometric sensor providing excellent thermal profile with typical NETD of 50 mK (40mK upon request). The CRIUS 640 is the among the most compact and lightest VGA thermal imaging camera in the world.

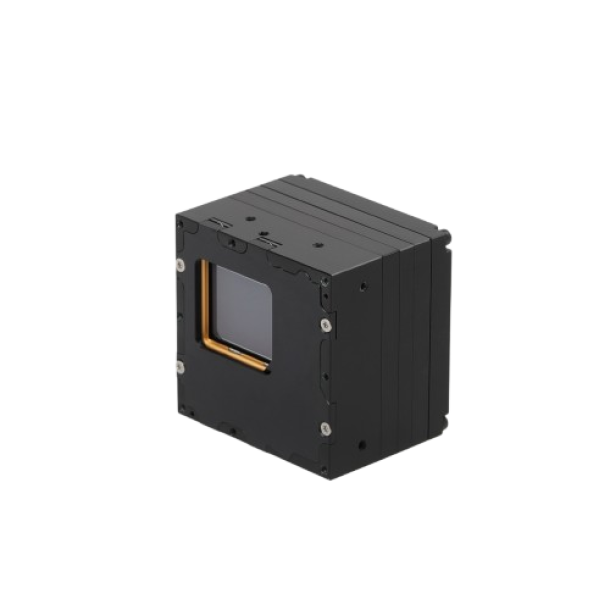

The Crius S 1280 boasts a high-performance 1280x1024-pixel bolometric sensor, delivering exceptional resolution and thermal sensitivity with a NETD of less than 50 mK. Its compact, SWaP-optimized design ensures efficiency in size, weight, and power consumption, while the mechanical shutter enhances image consistency. Designed for advanced DRI (Detection, Recognition, Identification) tasks, the Crius S 1280 series excel in Search and Rescue missions, providing reliable and precise thermal imaging in critical scenarios.
The Crius XP (Extreme Performance) 1280 delivers sharp thermal imagery with 1280x1024 resolution, 12 µm pixel pitch, and <20 mK NETD. Featuring shutterless operation, fast startup (<0.7s), and enhanced thermal stability, it ensures clear target visibility in demanding conditions.
Adavanced shutterless imaging with embedded correction
Contour enhancement:sharper DRI and superior object clarity
Column and temporal denoising: NETD halved from 40 mK to 20 mK
Contrast sharpness core for autofocus management

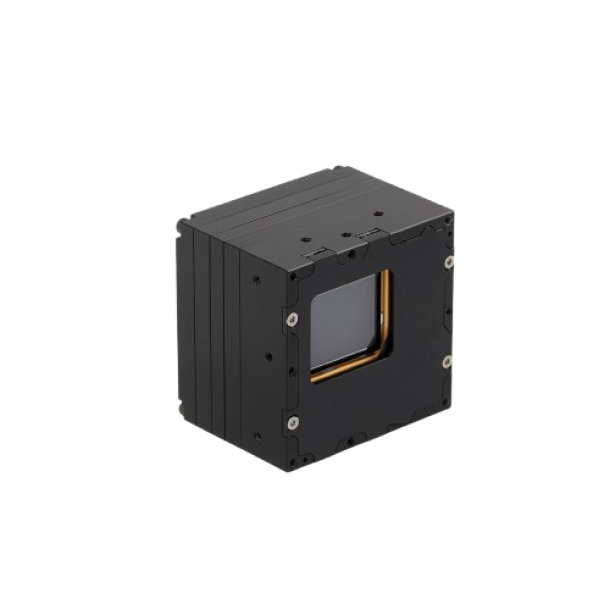

The Crius XP (Extreme Performance) 640 features a 640x480 pixels bolometric sensor providing excellent thermal sensitivity with less than NETD <20 mK with denoising. The Crius XP 640 is engineered for mission-critical defense applications, it features a next-gen shutterless algorithm for rapid imaging (<0.7s) and enhanced stability across extreme temperatures.
Adavanced shutterless imaging with embedded correction
Contour enhancement:sharper DRI and superior object clarity
Column and temporal denoising: NETD halved from 40 mK to 20 mK
Contrast sharpness core for autofocus management
The Crius XP (Extreme Performance) S 1280 is a high-performance LWIR thermal imaging core featuring 1280×1024 resolution, 12 µm pixel pitch, and a NETD below 20 mK. With a mechanical shutter and advanced contour enhancement, it delivers superior image clarity and enhanced DRI capabilities.
Uncooled with mechanical shutter
Contour enhancement:sharper DRI and superior object clarity
Column and temporal denoising: NETD halved from 40 mK to 20 mK
Contrast sharpness core for autofocus management
Product Selector guide
| Part Number | Description |
| XEN-000920 | Crius 640 50 mK (60 Hz) |
| XEN-000921 | Crius 640 50 mK (9 Hz) |
| XEN-000922 | Crius 640 40 mK (60 Hz) |
| XEN-000923 | Crius 640 40 mK (9 Hz) |
| XEN-000917 | Crius 1280 (60 Hz) |
| XEN-000919 | Crius 1280 (9 Hz) |
| XEN-000968 | Crius S 1280 50 mK (60 Hz) |
| XEN-000969 | Crius S 1280 50 mK (9 Hz) |
