Nocturn Series

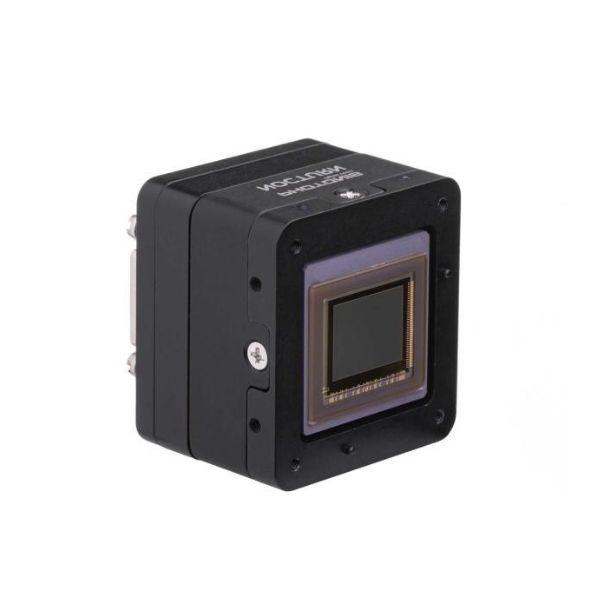

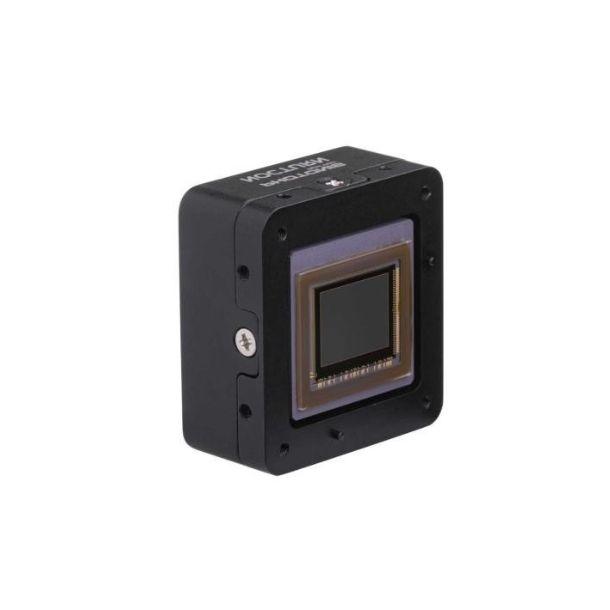

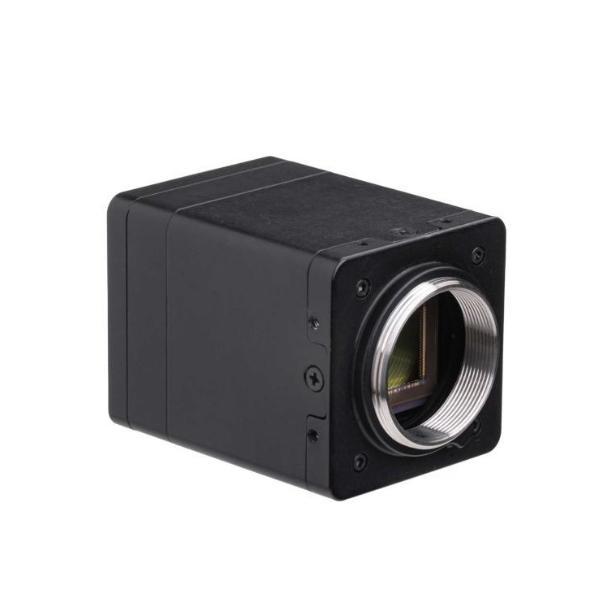

Nocturn Series angled front view

Low light Nocturn

The Nocturn Series of low light camera cores offer a broad range of video outputs spanning from the smallest configuration for OEMs and integrators to the plug and play with HD video.

The Nocturn camera cores use the power of Lynx CMOS and SmartColor sensor for optimized low-light level imaging.

Nocturn low-light imaging spectrum overview
Low light CMOS sensor
Daylight to quarter moon condition
Day and night imaging
Low latency

Features

  • Ideal for 24/7 operations
  • Less than 4e-read-out noise
  • 860 nm and 1064 nm laser line detection
  • Digital zoom up to 8x
  • HD format (1.3 Mpx)
  • Up to 100 fps

Request Documentation

Detailed datasheets, brochures and other reference materials are available upon request.

REQUEST FOR INFORMATION

Description

The Nocturn Series of low light camera cores are ruggedized, passive, low-light imaging cores that feature high-definition resolution, high sensitivity and high dynamic range with low power consumption. Powered by the Photonis Lynx CMOS sensor or the SmartColor imaging sensor, the Nocturn Series provides real-time imaging capabilities (from daylight to bright starlight scene illumination) in the visible and near infrared spectrum in either monochrome or color. Its small size, low weight and low power usage (SWaP) make this core module ideal for integration into mobile and handheld surveillance systems. The Nocturn Series of low light camera cores provide day-through-night imaging, capturing images in extreme lighting conditions from daylight through starlight condition. Nocturn Series is ruggedized, making them ideal for surveillance, security, and mobile applications such as border patrol, reconnaissance UAVs and armored vehicle perimeter monitoring. Optimized for size, weight and power (SWaP) requirements, the Nocturn Series is also a well-suited imaging solution for man-portable uses such as weapon sights, helmet displays, and monocular.

Technical Information

Camera Specifications
Sensor Monochrome and SmartColor CMOS sensor
Frame rate up to 100 fps
Available Video Output HDSDI 720p, CameraLink or NTSC/PAL, LVCMOS, USB 3.0
Mounting interface ¼-20'' tripod mount
Lens mount C-mount
Optical interface Compatible with 1 inch and 2/3 inch optics

Options

Nocturn HD-SDI camera

Plug and play camera core with HD video

The plug and play camera core with HD video, The Nocturn HD-SDI camera, uses Photonis’ award-winning CMOS image sensor technology to provide unsurpassed day through night imaging capabilities in either monochrome or color without additional illumination or secondary technology, which is considered as passive low light camera imaging.

  • Monochrome or Smart Colour
  • Starlight condition down to 2 mlux
  • Day-through-night Imaging
  • High-QE Near Infrared (NIR)
  • Passive low-light camera
Nocturn U3 camera

Simple plug-and-play low light camera core

The Nocturn U3 (USB3 Vision interface) is the simple plug-and-play low light camera core for high-resolution imaging under a range of lighting conditions.

The Nocturn U3 uses the award-winning CMOS image sensor technology to provide both daylight and low light images in either monochrome or colour for a diverse range of applications like machine vision, security and surveillance.

  • Monochrome or Colour
  • High sensitive day/night capability
  • CS mount lens interface
  • High frame rate, no latency
  • Optimised for mobility applications
  • Passive low-light camera
Nocturn XL camera

Versatile video output interfaces

The most versatile configuration of Nocturn for a broad range of applications, the Nocturn XL camera has an integrated interface board that can be used to output digital video over a CameraLink compatible interface as well as NTSC/PAL composite video.

  • Passive low-light camera
  • Day to low-light detection
  • High frame rate, no latency
  • Optimised for mobility applications
  • For a complete range of connection interfaces
Nocturn XS camera

The smallest configuration of Nocturn for demanding integrators.

The Nocturn XS offers both monochrome imaging to provide excellent performance in low light level condition and color vision for those who want to gain more detail information in low light level condition.

  • Passive low-light camera
  • Day to low-light detection
  • High frame rate, no latency
  • Optimised for mobility applications
  • For a complete range of connection interfaces
