Wildcat

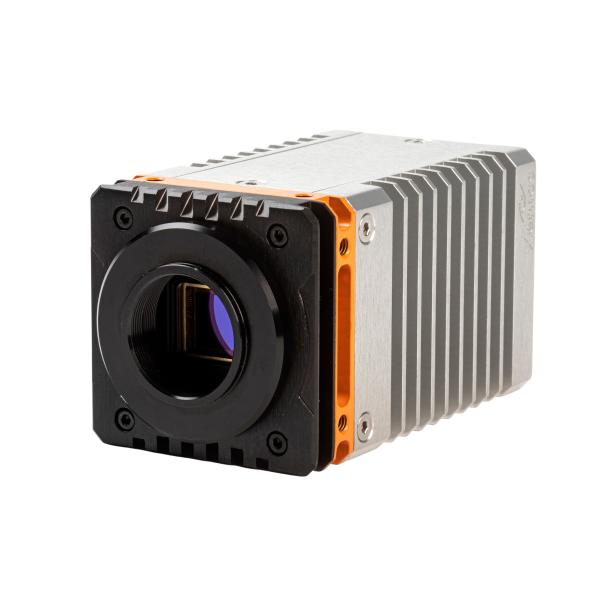

Wildcat SWIR camera image 1

High resolution Wildcat

High resolution SWIR camera: The Wildcat/Wildcat+ series is based on a state-of-the art uncooled InGaAs detector with 640 x 512 pixels and 20 µm pixel pitch (Wildcat 640/Wildcat+ 640/Wildcat+ TE0 and WL series) or 1280 x 1024 pixels and 5 µm pixel pitch (Wildcat+ 1280 series). Wildcat/Wildcat+ cameras come with a CameraLink or USB3 Vision interfaces with low weight and power. Wildcat/Wildcat+ cameras are suitable for semiconductor inspection, display inspection and laser beam analysis.

High resolution Wildcat
High-resolution SWIR imaging
Compact and industry-proven camera design
Flexible optical mount and lens options

Description

Wildcat/Wildcat+ series cameras are suitable for industrial implementations such as process monitoring, industrial machine vision and medical applications. The high-performance cameras also fit scientific uses. The cameras offer superior, high-resolution SWIR imaging capabilities, come in a versatile and industry-proven Wildcat camera package (GenICam) compliant and offer on-board image processing. Wildcat 640 is an optimized SWIR solution combining the advantages of a small sized camera, high-speed operation, high sensitivity, and high dynamic range. Wildcat+ 640 series is a SWIR camera with a high frame rate at 300 Hz full and a very low noise of only 45e-. Combined with a large pixel pitch of 20 µm, this gives Wildcat+ 640 a unique ability to work in low light environments. In Wildcat+ 640 TE0 and WL series, the WL version uses a special windowless sensor package for laser beam analysis applications. Wildcat+ 1280 is a high-resolution, SWIR megapixel camera for high precision inspection in laser monitoring, semiconductor inspection and other industrial applications.

Request Documentation

Detailed datasheets, brochures and other reference materials are available upon request.

REQUEST FOR INFORMATION

Technical Information

Camera Specifications Wildcat 640 Wildcat+ 640 Wildcat+ 640 TE0 and WL Wildcat+ 1280
Pixel pitch 20 µm 20 µm 20 µm 5 µm
Image format 640 x 512 pixels 640 x 512 pixels 640 x 512 pixels 1280 x 1024 pixels
Spectral range 900 - 1700 nm 900 - 1700 nm 900 - 1700 nm 400 - 1700 nm
Max frame rate (full frame) 110 Hz or 220 Hz 300 Hz 220 Hz 120 Hz
Regulatory compliance CE CE CE CE
Detector type InGaAs photodiode array with CTIA ROIC InGaAs photodiode array with CTIA ROIC InGaAs photodiode array with CTIA ROIC (WL version comes without detector cover glass) InGaAs photodiode array with CTIA ROIC
Power consumption < 6 W < 7 W < 7 W < 7 W
Camera weight 316 g or 358 g 316 g or 358 g 316 g or 358 g 345 g or 385 g
Optical interface C-mount or M42 C-mount or M42 C-mount or M42 C-mount or M42
Digital output format CameraLink or USB3 Vision CameraLink (16 bit) or USB3 Vision (16 bit) CameraLink (16 bit) or USB3 Vision (16 bit) CameraLink (16 bit) or USB3 Vision (16 bit)

Options

Wildcat 640 Series

Wildcat 640 series is based on an in-house developed, temperature stabilized InGaAs detector with a 640 x 512 pixel resolution. The Wildcat 640 cameras are offered with high frame of up to 220 Hz. The camera comes with a CameraLinkTM or USB3 Vision interface and features low weight and power. The Wildcat 640 is suitable for SWIR hyperspectral imaging, semiconductor inspection and laser beam analysis.

  • High resolution SWIR Imaging
  • Frame rate up to 220 Hz or 110 Hz
  • Low noise and high dynamic range

Specification

Mechanical Specifications Wildcat 640 CL 100 Wildcat 640 U3V 100 Wildcat 640 CL 200 Wildcat 640 U3V 200
Approximate dimensions - excluding lens [width x height x length] [mm] 55 x 55 x 72 55 x 55 x 91.5 55 x 55 x 72 55 x 55 x 91.5
Weight [gr] - excluding lens 316 358 316 358
Optical interface C-mount or M42 C-mount or M42 C-mount or M42 C-mount or M42

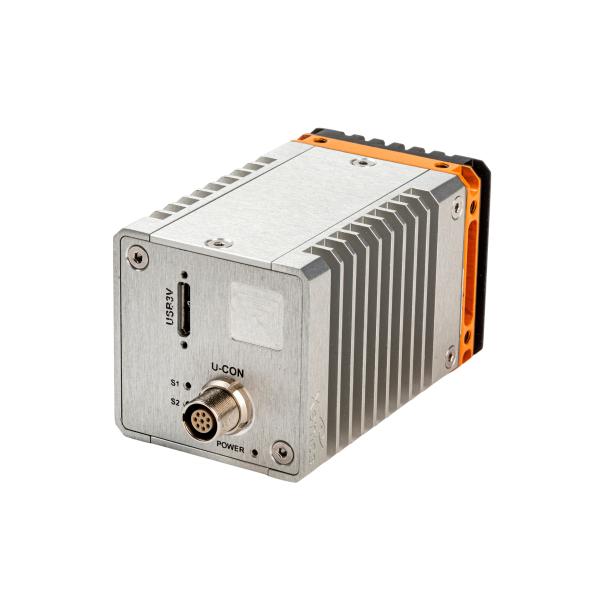

Connector USB - USB 3.0 type micro-B - USB 3.0 type micro-B

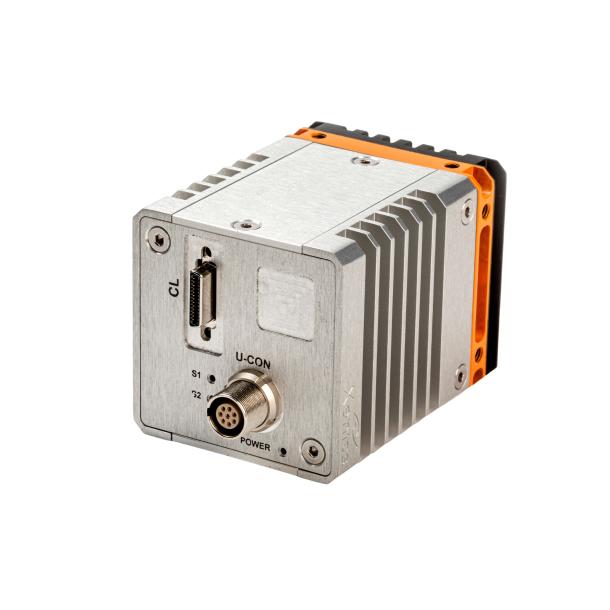

Connector CameraLink Standard SDR - Standard SDR -
Connector power/trigger/serial command Lemo 1B.308 (unified connector) Lemo 1B.308 (unified connector) Lemo 1B.308 (unified connector) Lemo 1B.308 (unified connector)
Environmental & Power Specifications Wildcat 640 CL 100 Wildcat 640 U3V 100 Wildcat 640 CL 200 Wildcat 640 U3V 200
Operating case temperature [°C] From -40 to +70 From -40 to +70 From -40 to +70 From -40 to +70
Storage temperature [°C] From -40 to +85 From -40 to +85 From -40 to +85 From -40 to +85
Power consumption [W] <6 <6 <6 <6
Power supply voltage DC 12 V DC 12 V DC 12 V DC 12 V
Shock 40 g, 11 ms, according to MIL-STD810G 40 g, 11 ms, according to MIL-STD810G 40 g, 11 ms, according to MIL-STD810G 40 g, 11 ms, according to MIL-STD810G
Vibration 5 g [20 to 2000 Hz], according to MIL-STD810G 5 g [20 to 2000 Hz], according to MIL-STD810G 5 g [20 to 2000 Hz], according to MIL-STD810G 5 g [20 to 2000 Hz], according to MIL-STD810G
IP rating IP40 IP40 IP40 IP40
Regulatory compliance CE CE CE CE
Electro-Optical Specifications Wildcat 640 CL 100 Wildcat 640 U3V 100 Wildcat 640 CL 200 Wildcat 640 U3V 200
Image format [pixels] 640 x 512 640 x 512 640 x 512 640 x 512
Pixel pitch [µm] 20 20 20 20
Detector type InGaAs photodiode array with CTIA ROIC InGaAs photodiode array with CTIA ROIC InGaAs photodiode array with CTIA ROIC InGaAs photodiode array with CTIA ROIC
Sensor temperature stabilization TE cooler TE cooler TE cooler TE cooler
Integration type Snapshot - global shutter Snapshot - global shutter Snapshot - global shutter Snapshot - global shutter
Active area and diagonal [mm] 12.8 x 10.24 [diagonal 16.4] 12.8 x 10.24 [diagonal 16.4] 12.8 x 10.24 [diagonal 16.4] 12.8 x 10.24 [diagonal 16.4]
Optical fill factor 100% 100% 100% 100%
Spectral range [nm] 900 - 1700 900 - 1700 900 - 1700 900 - 1700
Quantum efficiency ~80% [typical peak value] ~80% [typical peak value] ~80% [typical peak value] ~80% [typical peak value]
Gain modes High Gain [HG] & High Dynamic Range [HDR] High Gain [HG] & High Dynamic Range [HDR] High Gain [HG] & High Dynamic Range [HDR] High Gain [HG] & High Dynamic Range [HDR]
Full well capacities [electrons] 110k [HG] & 600k [HDR] 110k [HG] & 600k [HDR] 110k [HG] & 600k [HDR] 110k [HG] & 600k [HDR]
Read noise [electrons] 80 [HG] & 250 [HDR] 80 [HG] & 250 [HDR] 80 [HG] & 250 [HDR] 80 [HG] & 250 [HDR]
Dark current [electrons/second] <100k [at 288K sensor temp] <100k [at 288K sensor temp] <100k [at 288K sensor temp] <100k [at 288K sensor temp]
Read out mode ITR ITR ITR ITR
Pixel operability >99% >99% >99% >99%
Preconfigured exposure time range [ms] HG: 0.5 ms & 5 ms; HDR: 0.5 ms & 5 ms HG: 0.5 ms & 5 ms; HDR: 0.5 ms & 5 ms HG: 0.5 ms & 5 ms; HDR: 0.5 ms & 5 ms HG: 0.5 ms & 5 ms; HDR: 0.5 ms & 5 ms
Max frame rate [Hz] [full frame] 110 110 220 220
Region of interest Yes Yes Yes Yes
Min region size [pixels] Min 1032 pixels Min 1032 pixels Min 1032 pixels Min 1032 pixels
Max frame rate [Hz] [min region size] >1 kHz >1 kHz >1 kHz >1 kHz
Command and control CameraLink Base USB 3 Vision CameraLink Base USB 3 Vision
Digital output format CameraLink Base (16 bit) USB 3 Vision (16 bit) CameraLink Base (16 bit) USB 3 Vision (16 bit)
Trigger 2 trigger in & 2 trigger out - LVCMOS 3.3 V 2 trigger in & 2 trigger out - LVCMOS 3.3 V 2 trigger in & 2 trigger out - LVCMOS 3.3 V 2 trigger in & 2 trigger out - LVCMOS 3.3 V

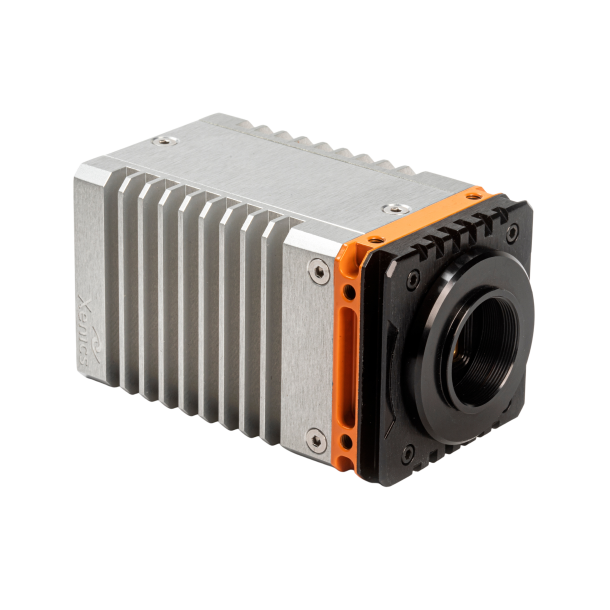

Wildcat+ 640

The Wildcat+ 640 series is based on a state-of-the-art InGaAs detector with 640 x 512 pixels and 20 µm pixel pitch. The camera offers superior, high resolution SWIR imaging capabilities, comes in a versatile and industry-proven Wildcat camera package (GenICam compliant) and offers advanced on-board image processing. The Wildcat+ 640 camera outputs full frame images up to 300 Hz via either a CameraLink or USB3 Vision interface.

  • High-resolution SWIR imaging
  • Frame rate up to 300 HZ
  • Flexible optical mount and lens options

Specification

Mechanical Specifications Wildcat+ 640 CL 300 Wildcat+ 640 U3V 300
Approximate dimensions - excluding lens [width x height x length] [mm] 55 x 55 x 72 55 x 55 x 91.5
Weight [gr] - excluding lens 316 358
Optical interface C-mount or M42 C-mount or M42
Connector USB - USB 3.0 type micro-B
Connector CameraLink Standard SDR -
Connector power/trigger/serial command Lemo 1B.308 (unified connector) Lemo 1B.308 (unified connector)
Environmental & Power Specifications Wildcat+ 640 CL 300 Wildcat+ 640 U3V 300
Operating case temperature [°C] From -40 to +70 From -40 to +70
Storage temperature [°C] From -40 to +85 From -40 to +85
Power consumption [W] <7 <7
Power supply voltage DC 12 V DC 12 V
Shock 40 g, 11 ms, according to MIL-STD810G 40 g, 11 ms, according to MIL-STD810G
Vibration 5 g [20 to 2000 Hz], according to MIL-STD810G 5 g [20 to 2000 Hz], according to MIL-STD810G
Electro-Optical Specifications Wildcat+ 640 CL 300 Wildcat+ 640 U3V 300
Image format [pixels] 640 x 512 640 x 512
Pixel pitch [µm] 20 20
Detector type InGaAs photodiode array with ROIC InGaAs photodiode array with ROIC
Sensor temperature stabilization TE cooler TE cooler
Integration type Snapshot - global shutter Snapshot - global shutter
Active area and diagonal [mm] 12.8 x 10.24 [diagonal 16.4] 12.8 x 10.24 [diagonal 16.4]
Optical fill factor 100% 100%
Spectral range [nm] 900 - 1700 900 - 1700
Quantum efficiency ~80% [typical peak value] ~80% [typical peak value]
Gain modes High Gain [HG] & High Dynamic Range mode [HDR] High Gain [HG] & High Dynamic Range mode [HDR]
Full well capacities [electrons] 65k [HG] & 550k [HDR] 65k [HG] & 550k [HDR]
Read noise [electrons] 45 [HG] & 200 [HDR] 45 [HG] & 200 [HDR]
Dark current [electrons/second] <100k <100k
Read out mode ITR/IWR ITR/IWR
Pixel operability >99.5% >99.5%
Preconfigured exposure time range [ms] HDR ITR: 0.5 ms; HG ITR: 0.5 ms & 5 ms; HG IWR 0.5 ms & 3 ms; TrueNUC ITR HG&HDR 0.1-20ms; TrueNUC IWR HG 3-20ms HDR ITR: 0.5 ms; HG ITR: 0.5 ms & 5 ms; HG IWR 0.5 ms & 3 ms; TrueNUC ITR HG&HDR 0.1-20ms; TrueNUC IWR HG 3-20ms
Max frame rate [Hz] [full frame] 300 300
Region of interest Yes Yes
Min region size [pixels] 8 x 8 (step size 8 pixels in X & 8 pixels in Y) 8 x 8 (step size 8 pixels in X & 8 pixels in Y)
Max frame rate [Hz] [min region size] >20 kHz >20 kHz
Command and control CameraLink Base USB 3 Vision
Digital output format CameraLink Base (16 bit) USB 3 Vision (16 bit)
Trigger Connector: 2 trigger in & 2 trigger out - LVCMOS 3.3 V; CameraLink trigger in Connector: 2 trigger in & 2 trigger out - LVCMOS 3.3 V; CameraLink trigger in
Wildcat+ 640 TE0 and WL

The Wildcat+ 640 TE0 and WL series is based upon a state-of-the-art uncooled InGaAs detector with 640x512 pixels and 20 µm pixel pitch. The WL version uses a special windowless sensor package for laser beam analysis applications. The camera offers superior, high-resolution SWIR imaging capabilities, comes in a versatile and industry-proven Wildcat camera package (GenICam compliant) and offers advanced on-board image processing. The Wildcat+ 640 TE0 and WL cameras output full frame images at 220 Hz via either a CameraLinkTM or USB3 Vision interface.

  • High-resolution SWIR imaging
  • Fram rate up to 220 Hz
  • Flexible optical mount and lens options

Specification

Mechanical Specifications Wildcat+ 640 TE0 CL 200 Wildcat+ 640 TE0 U3V 200 Wildcat+ 640 WL CL 200 Wildcat+ 640 WL U3V 200
Approximate dimensions - excluding lens [width x height x length] [mm] 55 x 55 x 72 55 x 55 x 91.5 55 x 55 x 72 55 x 55 x 91.5
Weight [gr] - excluding lens 316 358 316 358
Optical interface C-mount or M42 C-mount or M42 C-mount or M42 C-mount or M42
Connector USB - USB 3.0 type micro-B - USB 3.0 type micro-B
Connector CameraLink Standard SDR - Standard SDR -
Connector power/trigger/serial command Lemo 1B.308 (unified connector) Lemo 1B.308 (unified connector) Lemo 1B.308 (unified connector) Lemo 1B.308 (unified connector)
Environmental & Power Specifications Wildcat+ 640 TE0 CL 200 Wildcat+ 640 TE0 U3V 200 Wildcat+ 640 WL CL 200 Wildcat+ 640 WL U3V 200
Operating case temperature [°C] From -40 to +70 From -40 to +70 From -40 to +70 From -40 to +70
Storage temperature [°C] From -40 to +85 From -40 to +85 From -40 to +85 From -40 to +85
Power consumption [W] <7 <7 <7 <7
Power supply voltage DC 12 V DC 12 V DC 12 V DC 12 V
Shock 40 g, 11 ms, according to MIL-STD810G 40 g, 11 ms, according to MIL-STD810G 40 g, 11 ms, according to MIL-STD810G 40 g, 11 ms, according to MIL-STD810G
Vibration 5 g [20 to 2000 Hz], according to MIL-STD810G 5 g [20 to 2000 Hz], according to MIL-STD810G 5 g [20 to 2000 Hz], according to MIL-STD810G 5 g [20 to 2000 Hz], according to MIL-STD810G
IP rating IP40 IP40 IP40 IP40
Regulatory compliance CE CE CE CE
Electro-Optical Specifications Wildcat+ 640 TE0 CL 200 Wildcat+ 640 TE0 U3V 200 Wildcat+ 640 WL CL 200 Wildcat+ 640 WL U3V 200
Image format [pixels] 640 x 512 640 x 512 640 x 512 640 x 512
Pixel pitch [µm] 20 20 20 20
Detector type InGaAs photodiode array with CTIA ROIC (WL version comes without detector cover glass) InGaAs photodiode array with CTIA ROIC (WL version comes without detector cover glass) InGaAs photodiode array with CTIA ROIC (WL version comes without detector cover glass) InGaAs photodiode array with CTIA ROIC (WL version comes without detector cover glass)
Sensor temperature stabilization NA(uncooled) NA(uncooled) NA(uncooled) NA(uncooled)
Integration type Snapshot - global shutter Snapshot - global shutter Snapshot - global shutter Snapshot - global shutter
Active area and diagonal [mm] 12.8 x 10.24 [diagonal 16.4] 12.8 x 10.24 [diagonal 16.4] 12.8 x 10.24 [diagonal 16.4] 12.8 x 10.24 [diagonal 16.4]
Optical fill factor 100% 100% 100% 100%
Spectral range [nm] 900 - 1700 900 - 1700 900 - 1700 900 - 1700
Quantum efficiency ~80% [typical peak value] ~80% [typical peak value] ~80% [typical peak value] ~80% [typical peak value]
Gain modes High Gain [HG] & High Dynamic Range [HDR] High Gain [HG] & High Dynamic Range [HDR] High Gain [HG] & High Dynamic Range [HDR] High Gain [HG] & High Dynamic Range [HDR]
Full well capacities [electrons] 65k [HG] & 550k [HDR] 65k [HG] & 550k [HDR] 65k [HG] & 550k [HDR] 65k [HG] & 550k [HDR]
Read noise [electrons] 45 [HG] & 200 [HDR] 45 [HG] & 200 [HDR] 45 [HG] & 200 [HDR] 45 [HG] & 200 [HDR]
Dark current [electrons/second] <100k <100k <100k <100k
Read out modes ITR/IWR ITR/IWR ITR/IWR ITR/IWR
Pixel operability >99.5% >99.5% >99.5% >99.5%
Preconfigured exposure time range [ms] HDR ITR: 0.5 ms; HG ITR: 0.5 ms & 5 ms HDR ITR: 0.5 ms; HG ITR: 0.5 ms & 5 ms HDR ITR: 0.5 ms; HG ITR: 0.5 ms & 5 ms HDR ITR: 0.5 ms; HG ITR: 0.5 ms & 5 ms
Max frame rate [Hz] [full frame] 220 220 220 220
Region of interest Yes Yes Yes Yes
Min region size [pixels] 48 x 48 (step size 8 pixels in X & 8 pixels in Y) 48 x 48 (step size 8 pixels in X & 8 pixels in Y) 48 x 48 (step size 8 pixels in X & 8 pixels in Y) 48 x 48 (step size 8 pixels in X & 8 pixels in Y)
Max frame rate [Hz] [min region size] >10 kHz >10 kHz >10 kHz >10 kHz
Command and control CameraLink Base USB 3 Vision CameraLink Base USB 3 Vision
Digital output format CameraLink Base (16 bit) USB 3 Vision (16 bit) CameraLink Base (16 bit) USB 3 Vision (16 bit)
Trigger Connector: 2 trigger in & 2 trigger out - LVCMOS 3.3 V; CameraLink trigger in Connector: 2 trigger in & 2 trigger out - LVCMOS 3.3 V; CameraLink trigger in Connector: 2 trigger in & 2 trigger out - LVCMOS 3.3 V; CameraLink trigger in Connector: 2 trigger in & 2 trigger out - LVCMOS 3.3 V; CameraLink trigger in
Wildcat+ 1280

The Wildcat+ 1280 series is based upon a state-of-the-art InGaAs photodiode array with 1280x1024 pixel resolution and 5 µm pixel pitch. With its superior, high-resolution SWIR imaging capabilities, the camera is offered in a versatile and industry-proven Wildcat camera package (GenICam compliant).

The Wildcat+ 1280 camera offers advanced onboard image processing and outputs full frame images at 120 Hz via a CameraLink or USB3 Vision interface. It is designed for use in semiconductor wafer inspection, display inspection (mobile phone and TV), microscopy and laser beam analysis. Now available with support for trigger induced exposure time for external triggering - trigger induced exposure time functionality is only applicable to ITR mode.

  • High-resolution SWIR megapixel camera
  • Frame rate up to 120Hz
  • Flexible optical mount and lens options

Specification

Mechanical Specifications Wildcat+ 1280 CL Wildcat+ 1280 U3V
Approximate dimensions - excluding lens [width x height x length] [mm] 55 x 55 x 72 55 x 55 x 91.5
Weight [gr] - excluding lens 345 385
Optical interface C-mount or M42 C-mount or M42
Connector USB - USB 3.0 type micro-B
Connector CameraLink Standard SDR -
Connector power/trigger/serial command Lemo 1B.308 (unified connector) Lemo 1B.308 (unified connector)
Environmental & Power Specifications Wildcat+ 1280 CL Wildcat+ 1280 U3V
Operating case temperature [°C] From -40 to +70 From -40 to +70
Storage temperature [°C] From -40 to +85 From -40 to +85
Power consumption [W] <7 <7
Power supply voltage DC 12 V DC 12 V
Shock 40 g, 11 ms, according to MIL-STD810G 40 g, 11 ms, according to MIL-STD810G
Vibration 5 g [20 to 2000 Hz], according to MIL-STD810G 5 g [20 to 2000 Hz], according to MIL-STD810G
Electro-Optical Specifications Wildcat+ 1280 CL Wildcat+ 1280 U3V
Image format [pixels] 1280 x 1024 1280 x 1024
Pixel pitch [µm] 5 5
Detector type InGaAs InGaAs
Sensor temperature stabilization TE cooler TE cooler
Integration type Snapshot - global shutter Snapshot - global shutter
Active area and diagonal [mm] 6.4 x 5.12 [diagonal 8.2] 6.4 x 5.12 [diagonal 8.2]
Optical fill factor 100% 100%
Spectral range [nm] 400 - 1700 400 - 1700
Quantum efficiency ~77% [typical peak value] ~77% [typical peak value]
Gain modes Single Gain Single Gain
Full well capacities [electrons] 160k 160k
Read noise [electrons] 200 200
Dark current [electrons/second] <3k <3k
Read out mode IWR [< 7.5 ms] & ITR IWR [< 7.5 ms] & ITR
Pixel operability >99.5% >99.5%
Preconfigured exposure time range [ms] 0.5 ms & 5 ms & 7.5 ms 0.5 ms & 5 ms & 7.5 ms
Max frame rate [Hz] [full frame] 120 120
Region of interest Yes Yes
Min region size [pixels] 4 x 8 [step size 4 pixels in X & 8 pixels in Y] 4 x 8 [step size 4 pixels in X & 8 pixels in Y]
Max frame rate [Hz] [min region size] >3 kHz >3 kHz
Command and control CameraLink Base USB 3 Vision
Digital output format CameraLink Base (16 bit) USB 3 Vision (16 bit)
Trigger 2 trigger in & 2 trigger out - LVCMOS 3.3 V 2 trigger in & 2 trigger out - LVCMOS 3.3 V CameraLink trigger in

Product Selector Guide

Wildcat 640 Series

Part number Description
XEN-000676 Wildcat 640 CL 100
XEN-000662 Wildcat 640 U3V 100
XEN-000680 Wildcat 640 CL 200
XEN-000679 Wildcat 640 U3V 200

Wildcat+ 640 Series

Part number Description
XEN-000874 Wildcat+ 640 CL 300
XEN-000873 Wildcat+ 640 U3V 300

Wildcat+ 640 TE0 and WL

Part number Description
XEN-000721 Wildcat+ 640 TE0 CL 200
XEN-000719 Wildcat+ 640 TE0 U3V 200
XEN-000722 Wildcat+ 640 WL CL 200
XEN-000720 Wildcat+ 640 WL U3V 200

Wildcat+ 1280

Part number Description
XEN-000814 Wildcat+ 1280 CL
XEN-000815 Wildcat+ 1280 U3V

Software and accessories

Our standard IR software, Xeneth, is included with this camera. Find out more: Software | Xenics

Our cameras are compatible with a wide variety of lenses.

We do not manufacture our own lenses, but instead offer a variety of third-party lenses that can be purchased directly from us. We guarantee compatibility for any lenses purchased directly from Xenics.

The Xenics product range includes several products that require a frame grabber card to connect the camera to a PC.

The Euresys GRABLINK full, Imperx VCE-CLEX01 and National Instruments PCIe-1433 frame grabbers are fully integrated in Xeneth and the Xeneth SDK. This means that you can use Xeneth software both to control the camera and to grab images, making abstraction of the proprietary frame grabber software.

Other frame grabbers properly integrating the CameraLink and GigE Vision protocol can be used in Xeneth and the Xeneth SDK, however only for command and control of the camera. To grab images you rely on the dedicated software provided by the frame grabber vendors.

Xenics develops flexible and modular cameras resulting in a wide variety of camera interfaces. All these interfaces require unique cabling which we keep in stock. Next to interface cables we also offer separate power supplies.

Xenics ships its infrared cameras all over the world in high-grade custom cases. As our infrared cameras have different sizes, we have several case-types in stock guaranteeing a tight fit. The cases are made of polypropylene which makes them very sturdy. They are dustproof, watertight, stackable and can cope with temperatures between -40 °C and 80 °C. In addition, they are equipped with an automatic air pressure compensation valve allowing us to ship the cameras all over the globe.

Most of our infrared cameras come with a standard hardshell case upon purchasing.

A filter can be fitted in the C-mount lens adapter of most Xenics cameras. The following Xenics SWIR cameras have a standard filter holder in the C-mount adapter (only one filter can be mounted and filter has to be 25.4 mm in diameter):

  • Bobcat 320 and 640
  • Cheetah 640 CL
  • Lynx

In order to lock the filter in the c-mount adapter, the following filter retainer ring has to be ordered from Xenics, part number: MEC-000614

For a list of suitable filters, please directly contact the filter supplier, Spectrogon, for filter purchases. Please check camera and filter documentation for compatible wavelength ranges.

Brochure/Leaflet

Wildcat 640 Series Wildcat+ 1280 Series Wildcat+ 640 Series Wildcat+ 640 TE0 and WL Series
Icon for scroll to top button
