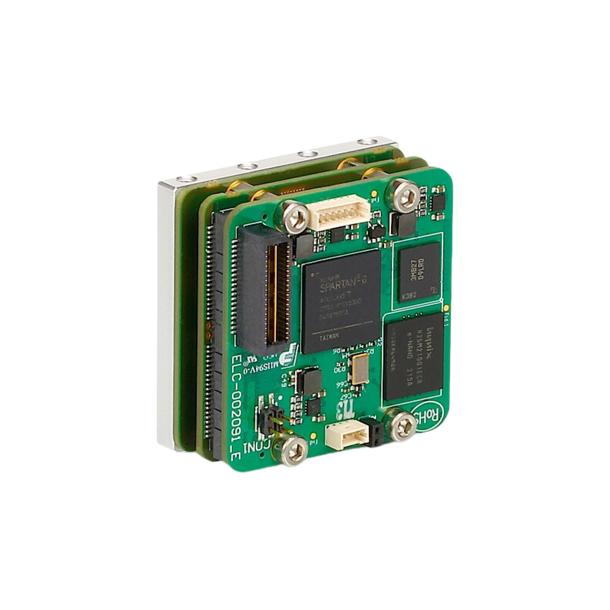

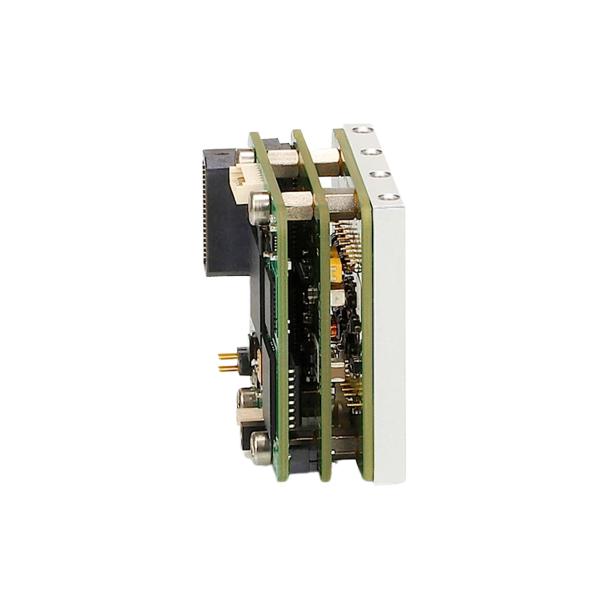

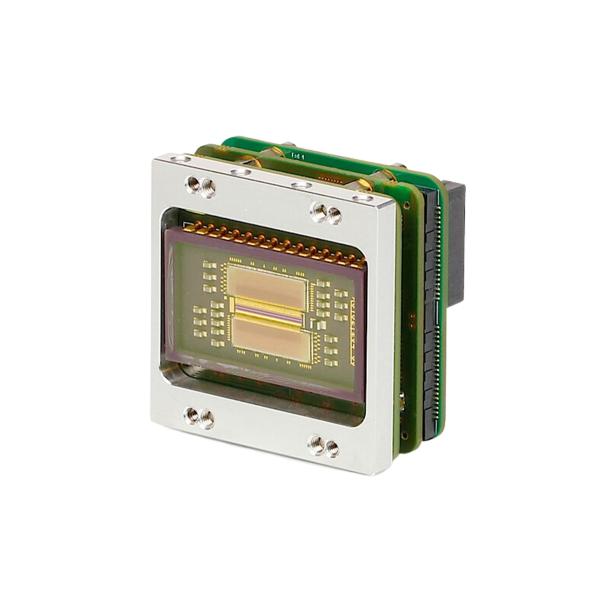

The XSL line-scan modules are based on an in-house developed linear detector, offer affordable short-wave infrared (SWIR) line-scan images. XSL SQ series is a small, line-scan SWIR module with square pixels. XSL R series is a small line-scan module with rectangular pixels.
High speed line-scan imaging up to 40 kHz
High resolution rectangular pixels or square pixels option
Industry standard interfaces
Description
The XSL line-scan modules are based on an in-house developed linear detector, offer affordable short-wave infrared (SWIR) line-scan images. XSL SQ series is a small, line-scan SWIR module with square pixels. XSL R series is a small line-scan module with rectangular pixels.
Request Documentation
Detailed datasheets, brochures and other reference materials are available upon request.
The XSL square (SQ) series are line-scan SWIR modules with square pixels. The XSL SQ camera modules are able to image line rates up to 40 kHz. The modules come with industry standard CameraLink, GigE Vision or QTE Samtec interfaces. Depending on imaging requirements, three resolutions of 512, 1024 or 2048 pixels are offered.
High speed line-scan imaging up to 40 kHz
High resolution 512/1024/2048 square pixels options
CameraLink or GigE Vision or QTE Samtec interfacing
Specifications
Mechanical Specifications
XSL 512 SQ CL / GigE
XSL 512 SQ 16bitDV
XSL 1024 SQ CL / GigE
XSL 1024 SQ 16bitDV
XSL 2048 SQ CL / GigE
XSL 2048 SQ 16bitDV
Approximate dimensions - excluding lens [width x height x length] [mm]
45 x 45 x 37 [CL], 45 x 45 x 55 [GigE]
45 x 45 x 28
45 x 45 x 37 [CL], 45 x 45 x 55 [GigE]
45 x 45 x 28
45 x 45 x 37 [CL], 45 x 45 x 55 [GigE]
45 x 45 x 28
Weight [gr] - excluding lens
55 [CL], 96 [GigE]
43
55 [CL], 96 [GigE]
43
55 [CL], 96 [GigE]
43
Optical interface [optional]
M42, C-mount or F-mount
M42, C-mount or F-mount
M42, C-mount or F-mount
M42, C-mount or F-mount
M42, C-mount or F-mount
M42, C-mount or F-mount
Connector CameraLink
Standard SDR [CL]
-
Standard SDR [CL]
-
Standard SDR [CL]
-
Connector GigE
RJ-45 [GigE]
-
RJ-45 [GigE]
-
RJ-45 [GigE]
-
Connector power
Hirose HR10-7R-SA[73]
-
Hirose HR10-7R-SA[73]
-
Hirose HR10-7R-SA[73]
-
Connector trigger
SMA
-
SMA
-
SMA
-
Connector general I/O
-
QTE-20-02-L-D-A Samtec
-
QTE-20-02-L-D-A Samtec
-
QTE-20-02-L-D-A Samtec
Environmental & Power Specifications
XSL 512 SQ CL / GigE
XSL 512 SQ 16bitDV
XSL 1024 SQ CL / GigE
XSL 1024 SQ 16bitDV
XSL 2048 SQ CL / GigE
XSL 2048 SQ 16bitDV
Ambient operating temperature range [°C]
From -40 to +70; also available in temperature range 0 - 50
From -40 to +70; also available in temperature range 0 - 50
From -40 to +70; also available in temperature range 0 - 50
From -40 to +70; also available in temperature range 0 - 50
From -40 to +70; also available in temperature range 0 - 50
From -40 to +70; also available in temperature range 0 - 50
Storage temperature [°C]
From -50 to +85
From -50 to +85
From -50 to +85
From -50 to +85
From -50 to +85
From -50 to +85
Power consumption [W]
3.9 [CL], 6.3 [GigE]
2.3
3.9 [CL], 6.3 [GigE]
2.3
3.9 [CL], 6.3 [GigE]
2.3
Power supply voltage
DC 12 V
DC 3.3 V
DC 12 V
DC 3.3 V
DC 12 V
DC 3.3 V
Shock
IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
Vibration
Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
Regulatory compliance
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
Electro-Optical Specifications
XSL 512 SQ CL / GigE
XSL 512 SQ 16bitDV
XSL 1024 SQ CL / GigE
XSL 1024 SQ 16bitDV
XSL 2048 SQ CL / GigE
XSL 2048 SQ 16bitDV
Sensor format [pixels]
512
512
1024
1024
2048
2048
Pixel pitch [µm]
25
25
12.5
12.5
12.5
12.5
Pixel height [µm]
25
25
12.5
12.5
12.5
12.5
Detector type
InGaAs photodiode array with CTIA ROIC
InGaAs photodiode array with CTIA ROIC
InGaAs photodiode array with CTIA ROIC
InGaAs photodiode array with CTIA ROIC
InGaAs photodiode array with CTIA ROIC
InGaAs photodiode array with CTIA ROIC
Integration type
Snapshot - global shutter
Snapshot - global shutter
Snapshot - global shutter
Snapshot - global shutter
Snapshot - global shutter
Snapshot - global shutter
Spectral range [nm]
900 - 1700
900 - 1700
900 - 1700
900 - 1700
900 - 1700
900 - 1700
Quantum efficiency
~80% [typical peak value]
~80% [typical peak value]
~80% [typical peak value]
~80% [typical peak value]
~80% [typical peak value]
~80% [typical peak value]
Full well capacities [electrons]
450k to 32M
450k to 32M
450k to 32M
450k to 32M
450k to 10M
450k to 10M
Read out mode
IWR and ITR
IWR and ITR
IWR and ITR
IWR and ITR
IWR and ITR
IWR and ITR
Pixel operability
>99.6%
>99.6%
>99%
>99%
>98%
>98%
Max line rate [kHz]
40
40
40
40
10
10
Analog-to-Digital [ADC] [bits]
14
14
14
14
14
14
Command and control
CameraLink or GigE Vision
QTE Samtec
CameraLink or GigE Vision
QTE Samtec
CameraLink or GigE Vision
QTE Samtec
Digital output format
CameraLink or GigE Vision [16 bit]
Digital Video [16 bit]
CameraLink or GigE Vision [16 bit]
Digital Video [16 bit]
CameraLink or GigE Vision [16 bit]
Digital Video [16 bit]
Trigger
In or out via SMA [configurable]. For CL - additional trigger in available via CC1
In or out via QTE Samtec [configurable]
In or out via SMA [configurable]. For CL - additional trigger in available via CC1
In or out via QTE Samtec [configurable]
In or out via SMA [configurable]. For CL - additional trigger in available via CC1
In or out via QTE Samtec [configurable]
The XSL R series, based on an in-house developed detector, offers high-resolution short-wave infrared (SWIR) line-scan images. The XSL R cameras are able to image line rates up to 40 kHz, for demanding spectroscopy applications. The module comes with an industry standard CameraLink or GigE Vision or a 16 bit Digital Video interface.
High speed line-scan imaging up to 40 kHz
High resolution rectangular pixels option
Industry standard interfaces (CameraLinkTM/GigE Vision/16 bit DV)
Specifications
Mechanical Specifications
XSL 1024 R CL / XSL 1024 R GigE
XSL 1024 R 16bitDV
XSL 2048 R CL / XSL 2048 R GigE
XSL 2048 R 16bitDV
Approximate dimensions - excluding lens [width x height x length] [mm]
45 x 45 x 37 [CL], 45 x 45 x 55 [GigE]
45 x 45 x 28
45 x 45 x 37 [CL], 45 x 45 x 55 [GigE]
45 x 45 x 28
Weight [gr] - excluding lens
55 [CL], 96 [GigE]
43
55 [CL], 96 [GigE]
43
Optical interface [optional]
M42, C-mount or F-mount
M42, C-mount or F-mount
M42, C-mount or F-mount
M42, C-mount or F-mount
Connector GigE
RJ-45 [on GigE version]
-
RJ-45 [on GigE version]
-
Connector CameraLink
Standard SDR [on CL version]
-
Standard SDR [on CL version]
-
Connector power
Hirose HR10-7R-SA[73]
-
Hirose HR10-7R-SA[73]
-
Connector trigger
SMA
-
SMA
-
Connector general I/O
-
QTE-20-02-L-D-A Samtec
-
QTE-20-02-L-D-A Samtec
Environmental & Power Specifications
XSL 1024 R CL / XSL 1024 R GigE
XSL 1024 R 16bitDV
XSL 2048 R CL / XSL 2048 R GigE
XSL 2048 R 16bitDV
Ambient operating temperature range [°C]
From -40 to +70
From -40 to +70
From -40 to +70
From -40 to +70
Storage temperature [°C]
From -50 to +85
From -50 to +85
From -50 to +85
From -50 to +85
Power consumption [W]
3.9 [CL], 6.3 [GigE]
2.3
3.9 [CL], 6.3 [GigE]
2.3
Power supply voltage
DC 12 V
DC 3.3 V
DC 12 V
DC 3.3 V
Shock
IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
Vibration
Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
Regulatory compliance
RoHS
RoHS
RoHS
RoHS
Electro-Optical Specifications
XSL 1024 R CL / XSL 1024 R GigE
XSL 1024 R 16bitDV
XSL 2048 R CL / XSL 2048 R GigE
XSL 2048 R 16bitDV
Sensor format [pixels]
1024
1024
2048
2048
Pixel pitch [µm]
12.5
12.5
12.5
12.5
Pixel height [µm]
250
250
250
250
Detector type
InGaAs photodiode array with CTIA ROIC
InGaAs photodiode array with CTIA ROIC
InGaAs photodiode array with CTIA ROIC
InGaAs photodiode array with CTIA ROIC
Integration type
Snapshot - global shutter
Snapshot - global shutter
Snapshot - global shutter
Snapshot - global shutter
Spectral range [nm]
900 - 1700
900 - 1700
900 - 1700
900 - 1700
Quantum efficiency
~80% [typical peak value]
~80% [typical peak value]
~80% [typical peak value]
~80% [typical peak value]
Full well capacities [electrons]
From 450k to 32M
From 450k to 32M
From 450k to 10M
From 450k to 10M
Read out mode
IWR and ITR
IWR and ITR
IWR and ITR
IWR and ITR
Pixel operability
>99%
>99%
>98%
>98%
Max line rate [kHz]
40
40
10
10
Analog-to-Digital [ADC] [bits]
14
14
14
14
Command and control
CameraLink or GigE Vision
QTE Samtec
CameraLink or GigE Vision
QTE Samtec
Digital output format
CameraLink or GigE Vision [16 bit]
Digital Video [16 bit]
CameraLink or GigE Vision [16 bit]
Digital Video [16 bit]
Trigger
In or out via SMA [configurable]. For CL - additional trigger in available via CC1
In or out via QTE Samtec [configurable]
In or out via SMA [configurable]. For CL - additional trigger in available via CC1
In or out via QTE Samtec [configurable]
Product Selector Guide
XSL R Series
Part number
Description
XEN-000438
XSL 1024 R CL
XEN-000439
XSL 1024 R GigE
XEN-000440
XSL 1024 R 16 bit DV
XEN-000441
XSL 2048 R CL
XEN-000442
XSL 2048 R GigE
XEN-000443
XSL 2048 R 16 bit DV
XSL SQ Series
Part Number
Description
XEN-000393
XSL 512 SQ CL
XEN-000397
XSL 512 SQ GigE
XEN-000145
XSL 512 SQ 16bitDV
XEN-000395
XSL 1024 SQ CL
XEN-000398
XSL 1024 SQ GigE
XEN-000392
XSL 1024 SQ 16bitDV
XEN-000396
XSL 2048 SQ CL
XEN-000399
XSL 2048 SQ GigE
XEN-000394
XSL 2048 SQ 16bitDV
Software and accessories
Our standard IR software, Xeneth, is included with this camera. Find out more: Software | Xenics
Our cameras are compatible with a wide variety of lenses.
We do not manufacture our own lenses, but instead offer a variety of third-party lenses that can be purchased directly from us. We guarantee compatibility for any lenses purchased directly from Xenics.
The Xenics product range includes several products that require a frame grabber card to connect the camera to a PC.
The Euresys GRABLINK full, Imperx VCE-CLEX01 and National Instruments PCIe-1433 frame grabbers are fully integrated in Xeneth and the Xeneth SDK. This means that you can use Xeneth software both to control the camera and to grab images, making abstraction of the proprietary frame grabber software.
Other frame grabbers properly integrating the CameraLink and GigE Vision protocol can be used in Xeneth and the Xeneth SDK, however only for command and control of the camera. To grab images you rely on the dedicated software provided by the frame grabber vendors.
Xenics develops flexible and modular cameras resulting in a wide variety of camera interfaces. All these interfaces require unique cabling which we keep in stock. Next to interface cables we also offer separate power supplies.
Xenics ships its infrared cameras all over the world in high-grade custom cases. As our infrared cameras have different sizes, we have several case-types in stock guaranteeing a tight fit. The cases are made of polypropylene which makes them very sturdy. They are dustproof, watertight, stackable and can cope with temperatures between -40 °C and 80 °C. In addition, they are equipped with an automatic air pressure compensation valve allowing us to ship the cameras all over the globe.
Most of our infrared cameras come with a standard hardshell case upon purchasing.
A filter can be fitted in the C-mount lens adapter of most Xenics cameras. The following Xenics SWIR cameras have a standard filter holder in the C-mount adapter (only one filter can be mounted and filter has to be 25.4 mm in diameter):
Bobcat 320 and 640
Cheetah 640 CL
Lynx
In order to lock the filter in the c-mount adapter, the following filter retainer ring has to be ordered from Xenics, part number: MEC-000614
For a list of suitable filters, please directly contact the filter supplier, Spectrogon, for filter purchases. Please check camera and filter documentation for compatible wavelength ranges.
