XTM
Xtm Thermal module

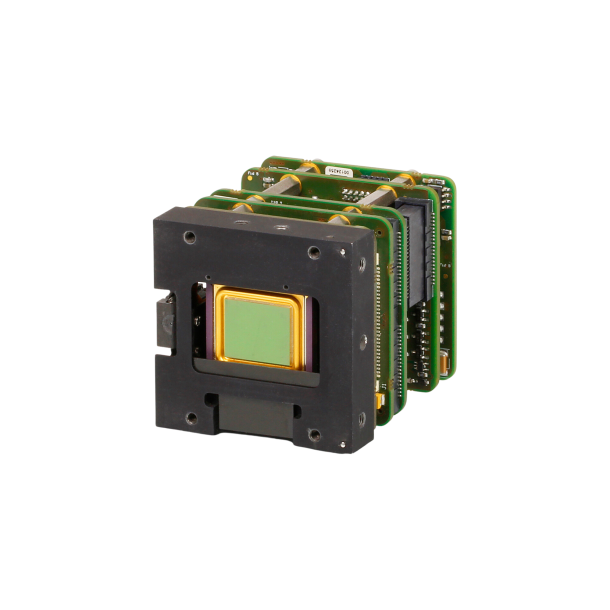

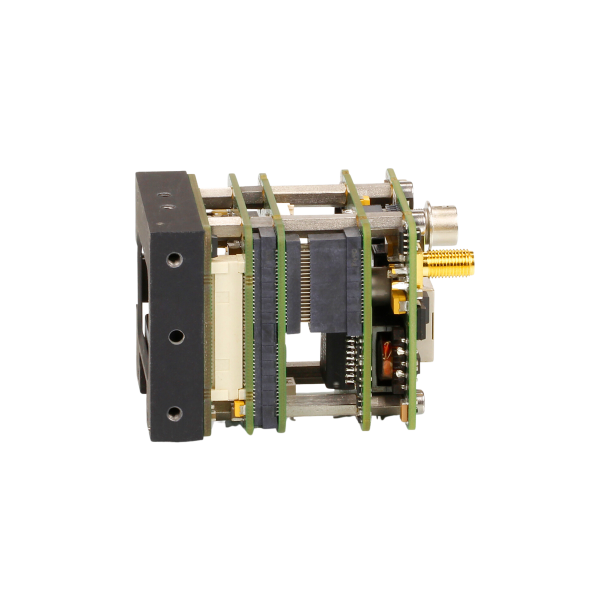

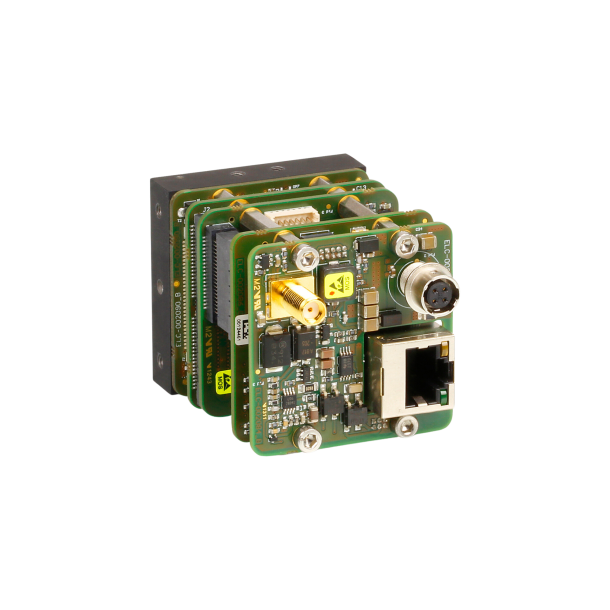

The Xtm+ Modular thermal modules are based on an uncooled microbolometer detector with a 640 x 480 pixel resolution. The XTM+ offers frame rates up to 60 Hz and lower detector NETD options (<30 mK available upon request). The camera is designed for use in safety & security and transportation applications.
Compact size
Easy connectivity via multiple interfaces
Frame rates up to 60 Hz
Description
The XTM+ 640 is equipped with an uncooled microbolometer array of 640 by 480 pixels with 17 µm pixel pitch for thermal imaging in the long wave infrared (8 - 12 µm), with high thermal sensitivity and NETD of <50 mK or < 30 mK (available upon request). With advanced shutter design for optimal image performance in a small form factor housing, it is a compact and versatile LWIR thermal camera module with unique image quality and stability.
Request Documentation
Detailed datasheets, brochures and other reference materials are available upon request.
REQUEST FOR INFORMATIONTechnical Information
| Mechanical Specifications | XTM+ 640 GigE | XTM+ 640 GigE 9Hz | XTM+ 640 CL | XTM+ 640 CL 9 Hz | XTM+ 640 16bit DV | XTM+ 640 16bit DV 9 Hz |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 45 x 45 x 63 | 45 x 45 x 63 | 45 x 45 x 45 | 45 x 45 x 45 | 45 x 45 x 36 | 45 x 45 x 36 |
| Weight [gr] - excluding lens | 125 | 125 | 84 | 84 | 72 | 72 |
| Optical interface [optional] | M42 or M34 x 0.75 | M42 or M34 x 0.75 | M42 or M34 x 0.75 | M42 or M34 x 0.75 | M42 or M34 x 0.75 | M42 or M34 x 0.75 |
| Connector GigE | RJ-45 | RJ-45 | - | - | - | - |
| Connector CameraLink | - | - | Standard SDR | Standard SDR | - | - |
| Connector power | Hirose HR10-7R-SA [73] | Hirose HR10-7R-SA [73] | Hirose HR10-7R-SA [73] | Hirose HR10-7R-SA [73] | - | - |
| Connector trigger | SMA | SMA | SMA | SMA | - | - |
| Connector analog | - | - | - | - | - | - |
| Connector RS232 | - | - | - | - | - | - |
| Connector general I/O | - | - | - | - | QTE-020-02-L-D-A Samtec | QTE-020-02-L-D-A Samtec |
| Environmental & Power Specifications | XTM+ 640 GigE | XTM+ 640 GigE 9Hz | XTM+ 640 CL | XTM+ 640 CL 9 Hz | XTM+ 640 16bit DV | XTM+ 640 16bit DV 9 Hz |
| Ambient operating temperature range [°C] | From -40 to +60; also available in temperature range 0 - 50 | From -40 to +60; also available in temperature range 0 - 50 | From -40 to +60; also available in temperature range 0 - 50 | From -40 to +60; also available in temperature range 0 - 50 | From -40 to +60; also available in temperature range 0 - 50 | From -40 to +60; also available in temperature range 0 - 50 |
| Storage temperature [°C] | From -45 to +85 | From -45 to +85 | From -45 to +85 | From -45 to +85 | From -45 to +85 | From -45 to +85 |
| Power consumption [W] | 4.6 | 4.6 | 2.9 | 2.9 | 2.7 | 2.7 |
| Power supply voltage | DC 12 V or PoE (Power over Ethernet) | DC 12 V or PoE (Power over Ethernet) | DC 12 V | DC 12 V | DC 3.3 V | DC 3.3 V |
| Shock | 40 g, 11 ms, MIL-STD810G / MIL-STD883J | 40 g, 11 ms, MIL-STD810G / MIL-STD883J | 40 g, 11 ms, MIL-STD810G / MIL-STD883J | 40 g, 11 ms, MIL-STD810G / MIL-STD883J | 40 g, 11 ms, MIL-STD810G / MIL-STD883J | 40 g, 11 ms, MIL-STD810G / MIL-STD883J |
| Vibration | 5 g [20 to 2000 Hz], MIL-STD810G / MIL-STD883J | 5 g [20 to 2000 Hz], MIL-STD810G / MIL-STD883J | 5 g [20 to 2000 Hz], MIL-STD810G / MIL-STD883J | 5 g [20 to 2000 Hz], MIL-STD810G / MIL-STD883J | 5 g [20 to 2000 Hz], MIL-STD810G / MIL-STD883J | 5 g [20 to 2000 Hz], MIL-STD810G / MIL-STD883J |
| Regulatory compliance | RoHS | RoHS | RoHS | RoHS | RoHS | RoHS |
| Electro-Optical Specifications | XTM+ 640 GigE | XTM+ 640 GigE 9Hz | XTM+ 640 CL | XTM+ 640 CL 9 Hz | XTM+ 640 16bit DV | XTM+ 640 16bit DV 9 Hz |
| Image format [pixels] | 640 x 480 | 640 x 480 | 640 x 480 | 640 x 480 | 640 x 480 | 640 x 480 |
| Pixel pitch [µm] | 17 | 17 | 17 | 17 | 17 | 17 |
| Detector type | a-Si microbolometer | a-Si microbolometer | a-Si microbolometer | a-Si microbolometer | a-Si microbolometer | a-Si microbolometer |
| Integration type | Rolling shutter | Rolling shutter | Rolling shutter | Rolling shutter | Rolling shutter | Rolling shutter |
| Active area and diagonal [mm] | 10.88 x 8.16 [13.6 diagonal] | 10.88 x 8.16 [13.6 diagonal] | 10.88 x 8.16 [13.6 diagonal] | 10.88 x 8.16 [13.6 diagonal] | 10.88 x 8.16 [13.6 diagonal] | 10.88 x 8.16 [13.6 diagonal] |
| Detector NETD [Noise Equivalent Temperature Difference] [mK] | <50 [at 30 Hz, 300K, F/1] [< 30 mK available upon request] | <50 [at 30 Hz, 300K, F/1] [< 30 mK available upon request] | <50 [at 30 Hz, 300K, F/1] [< 30 mK available upon request] | <50 [at 30 Hz, 300K, F/1] [< 30 mK available upon request] | <50 [at 30 Hz, 300K, F/1] [< 30 mK available upon request] | <50 [at 30 Hz, 300K, F/1] [< 30 mK available upon request] |
| Spectral range [µm] | 8-14 | 8-14 | 8-14 | 8-14 | 8-14 | 8-14 |
| Pixel operability | >99.5% | >99.5% | >99.5% | >99.5% | >99.5% | >99.5% |
| Max frame rate [full frame] [Hz] | 60 [or 9] | 60 [or 9] | 60 [or 9] | 60 [or 9] | 60 [or 9] | 60 [or 9] |
| Integration time range [µs] | 1-80 | 1-80 | 1-80 | 1-80 | 1-80 | 1-80 |
| Region of interest | Yes | Yes | Yes | Yes | Yes | Yes |
| Min region size [pixels] | 160 x 120 | 160 x 120 | 160 x 120 | 160 x 120 | 160 x 120 | 160 x 120 |
| Analog-to-Digital [ADC] [bits] | 16 | 16 | 16 | 16 | 16 | 16 |
| Command and control | GigE Vision | GigE Vision | CameraLink | CameraLink | QTE Samtec [serial LVCMOS] | QTE Samtec [serial LVCMOS] |
| Digital output format | 16 bit GigE Vision | 16 bit GigE Vision | 16 bit base CameraLink | 16 bit base CameraLink | 16 bit Digital Video | 16 bit Digital Video |
| Trigger | In or out via SMA [configurable, not for 9 Hz] | In or out via SMA [configurable, not for 9 Hz] | In or out via SMA or in via CL-CC1 [configurable, not for 9 Hz] | In or out via SMA or in via CL-CC1 [configurable, not for 9 Hz] | In or out via QTE Samtec [configurable, not for 9 Hz] | In or out via QTE Samtec [configurable, not for 9 Hz] |
Product Selector Guide
| Part number | Description |
| XEN-000637 | XTM+ 640 GigE |
| XEN-000642 | XTM+ 640 GigE [9 Hz] |
| XEN-000638 | XTM+ 640 CL |
| XEN-000643 | XTM+ 640 CL [9 Hz] |
| XEN-000635 | XTM+ 640 16bit DV |
| XEN-000640 | XTM+ 640 16bit DV [9 Hz] |
Features
- Compact size
- Easy connectivity via multiple interfaces
- Frame rates up to 60 Hz
- Lower NETD options available upon request
Our cameras are compatible with a wide variety of lenses.
We do not manufacture our own lenses, but instead offer a variety of third-party lenses that can be purchased directly from us. We guarantee compatibility for any lenses purchased directly from Xenics.
The Xenics product range includes several products that require a frame grabber card to connect the camera to a PC.
The Euresys GRABLINK full, Imperx VCE-CLEX01 and National Instruments PCIe-1433 frame grabbers are fully integrated in Xeneth and the Xeneth SDK. This means that you can use Xeneth software both to control the camera and to grab images, making abstraction of the proprietary frame grabber software.
Other frame grabbers properly integrating the CameraLink and GigE Vision protocol can be used in Xeneth and the Xeneth SDK, however only for command and control of the camera. To grab images, you rely on the dedicated software provided by the frame grabber vendors.
Xenics develops flexible and modular cameras resulting in a wide variety of camera interfaces. All these interfaces require unique cabling which we keep in stock. Next to interface cables we also offer separate power supplies.
Xenics ships its infrared cameras all over the world in high-grade custom cases. As our infrared cameras are of different sizes, we have several case-types in stock guaranteeing a tight fit. The cases are made of polypropylene which makes them very sturdy. They are dustproof, watertight, stackable and can cope with temperatures between -40 °C and 80 °C. In addition, they are equipped with an automatic air pressure compensation valve allowing us to ship the cameras all over the globe.
Most of our infrared cameras come with a standard hardshell case upon purchasing.
